Full Product Description

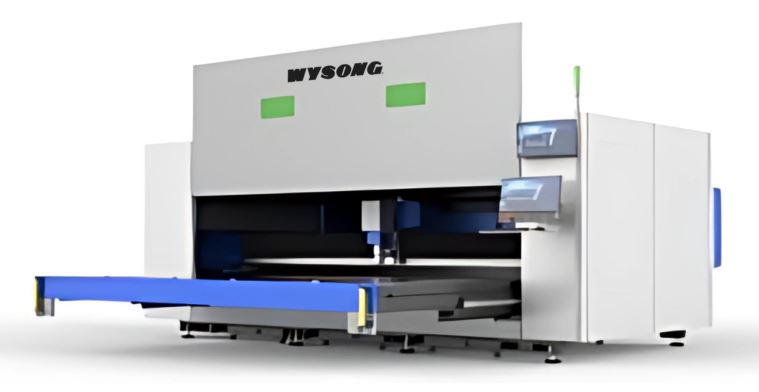

MODEL: MVD A FM-3015 FIBER LASER
Laser Power 2 Kw
Type Fly Optic
Maximum Sheet Size 5x10' (1500mm. x 3000 mm)
Maximum Cutting Thickness Steel 0.63" (16 mm)
Maximum Cutting Thickness Stainless steel 0.39" (10 mm)
Maximum Cutting Thickness Aluminum 0.24" (6 mm)
Maximum Loading Capacity 2204 lbs (1000 Kg)
Axes (X, Y, Z)159" (4050 mm) x 80" (2030 mm) x 14" (370 mm)
Average Electricity Consumption kw/h50 kw/h
Acceleration X, Y, Z: 4 G
Axes Speed X, Y: 120 meter / minute
Axes X and U Parallel, Y and Z 4 axis
Positioning Accuracy X,U,Y and Z +/- 0.00118" (0.03mm)
Repeatability. +/- 0.00118" (0.03 mm) for 4 axes

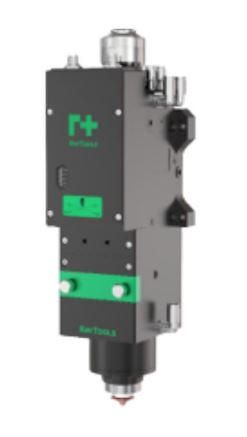

Cutting Head 5'' to 7.5'' Focus length
Z Axes Height Control TechMech
Cutting Gas Type Compressor Air, Oxygen and Nitrogen
Cutting Gas Pressure Oxygen 2 bar-25 bar, Nitrogen 5-25bar
Machine Weight 10,031 lbs (4550 Kg) (Including Chiller,
dustcollector)
COMPONENTS:
-IPG YLS resonator
-Optimum focus diameter
-Maintenance free technology,
-Continuous perfect beam quality with a laser beam is
transmitted by the fiber core through fiber cable.
-High efficiency, low consumption of electricity fiber laser
technology, 5-6 times the lower running cost.
-IPG Chiller - Digital micro processing controlled
PART NESTING - Lantek or Radon options. Auto or Manual
Advanced nesting algorithm optimizes the use of material,
minimizing scrap.
STANDARD FEATURES:

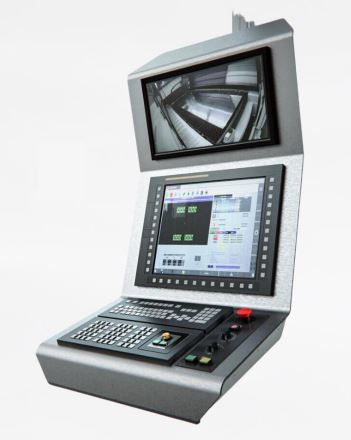

-Windows operating system
-Multi-touch graphic screen
-Multifunctional keyboard, button/joystick/speed
potentiometer
-EtherCAT communications for datatransfer or machinecontrol
-Enhanced Database for cuttng parameters,for different type
materials and thicknesses
-Fly Cut functions for same direction high-speed cutting
-"No Piercing" technology for thin materials, efficiency
time and cost improvements.
-Better results at thick cuts, by prioritizing all piercings
process before regular cutting
-Remote connection to PC
-Multi-language support
-Enhanced sheet metal recognition software
-Referencing and sheet alignment functions
-Setting different user-login levels for
operators/maintenance/admin
-Multi-functional workpiece job order search/recall function
