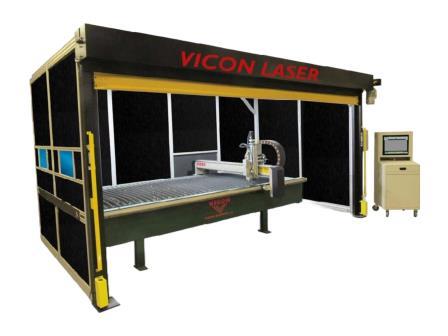

5' x 10', VICON LASER CUTTING MACHINE, MODEL#HVAC510LSR **NEW**
Specific Info On This Equipment
Reference Number: 11437
Condition: New
"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it." Henry Ford
Full Product Description
MODEL: HVAC 510LSR
EFFECTIVE CUTTING AREA: 5' X 10'
MACHINE DIMENSIONS: 144"X90X35"H
-LASER: 1500 WATT RAYCUS FIBER LASER POWER SUPPLY
-COMPUTER CONTROLLED AUTOFOCUS CUTTING HEAD
(SWITZERLAND RAYTOOLS AG)
-VICON PROGRAMMABLE CAPACITIVE LASER HEIGHT CONTROL
-STATE OF THE ART PC CONTROL COMES WITH VICON
HVAC CUTTING SOFTWARE
-STATE OF THE ART ELECTRONICS INCORPORATING
HIGH SPEED MOTORS CAPABLE OF TRAVERSING AT
A MAX OF 2000 IPM, RESULTING IN FASTER
PART PRODUCTION!
-HEAVY DUTY ONE PIECE STEEL FRAME
-LIGHT-WEIGHT ALUMINUM GANTRY, DOUBLE RACK AND
PINION DRIVE WITH DUAL HIGH SPEED DIGITAL MOTORS
OPTIONS:
SAFETY ENCLOSURE
ADDITONAL TOOLING STATION W/PLASMA CUTTING
DOWNLOAD INTERFACE FOR MOST CAD/CAM SOFTWARE PROGRAMS
OFFLINE PROGRAMMING SYSTEM
VICON COIL FEED SYSTEM
**** MADE IN THE USA! ****
