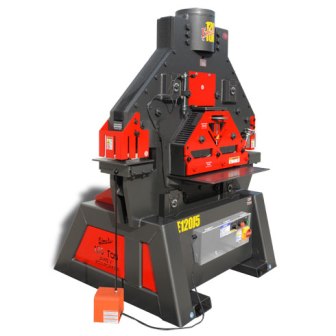

EDWARDS 120-TON IRONWORKER, 3-PHASE, MODEL#JAWS-120TON, **NEW**

Full Product Description

Model:  120-Ton

PUNCH:
Rating:  120 Tons
Max. Capacity:  1-1/2" Dia. in 1" A36
(65,000 PSI Tensile)
Stroke:  2-1/2"
Throat Depth:  11"
Open Height:  9-1/8"
Shut Height:  7"
Work Height:  36-5/8"

FLAT BAR SHEAR:
Max. Capacity:
1/2" x 24"
1" x 12"
Max. Round:  1-1/4"
Max. Square:  1-1/4"
Work Height:  33-1/4"

ANGLE SHEAR:
Max. Capacity:  6" x 6" x 1/2"
Work Height:  52-1/2"

COPER NOTCHER:
Max. Capacity:  2-1/2" x 6" x 1/2"
Work Height:  40"

OPEN CAVITY:
Height:  9"
Width:  11-3/4"
Work Height:  51-3/4"

GENERAL SPECIFICATIONS:
Standard Motor:
10 HP 3~ 208 V or 230 V
1770 RPM 26 A
Optional Motors:
10 HP 3~ 460 V
1770 RPM 12 A

10 HP 3~ 575 V
1770 RPM 10 A

10 HP 1~ 208 V or 230 V
1740 RPM 40 A
Hydraulic Pump:  24 GPM
Valve Pressure:  3800 PSI
Reservoir:  17 Gallons
Cylinder:  2-3/4" Ram

DIMENSIONS:
Height:  84"
Width:  60"
Depth:  60"
Shipping Weight:  5500 lb


The Powerhouse

    * Five Available Workstations
    * Universal Open Tooling Station
    * 24" Flat Bar Shear
    * Dedicated Coper Notcher
    * Electric Stroke Control

Our most powerful Ironworker, the Edwards 120 Ton JAWS
Ironworker offers the most in capacity and versatility.
Standard features include a Punch Assembly, 24" wide Flat
Bar Shear, high capacity Angle Shear, Coper Notcher and a
universal open tooling station for optional Tooling
Accessories allowing you to select the perfect tool for your
needs.

The optional Hydraulic Accessory Pack allows your Ironworker
to act as a power source to our expanding line of innovative
Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe
Bender, 20 Ton Shop Press and 40 Ton Shop Press.
