Full Product Description

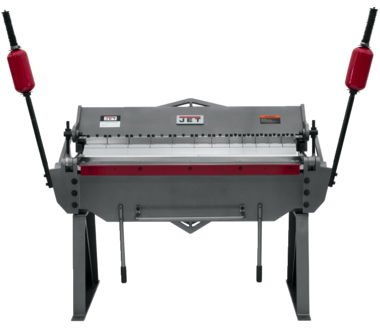

Model: BPF-1248
Stock Number: 754110
Style (Type): Floor Box and Pan
Mild Steel Capacity (Gauge): 12
Bending Length Capacity (in.): 48
Maximum Box Depth (in.): 4

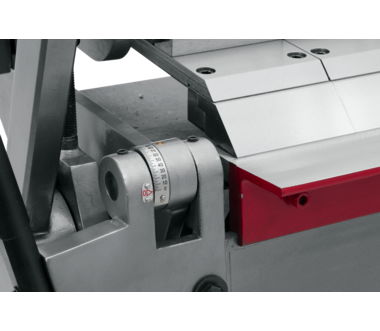

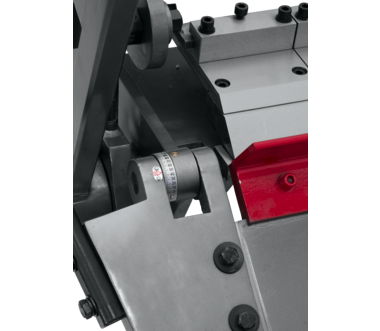

Maximum Lift of Beam (in.): 1-1/2
Beam Adjustment (Front to Rear) (in.): 7/8
Number and Width of Fingers (in.): 5@3, 2@4, 5@5
Finger Nose Angle (Deg.): 45
Nose Radius (in.): 1/32
Overall Dimensions (L x W x H) (in.): 70 x 34 x 52
Weight (lbs.): 1,110

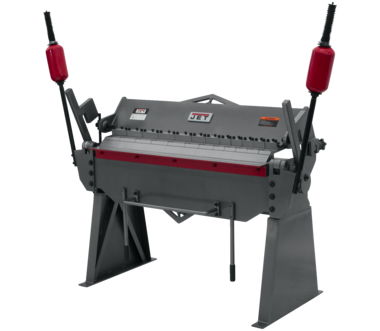

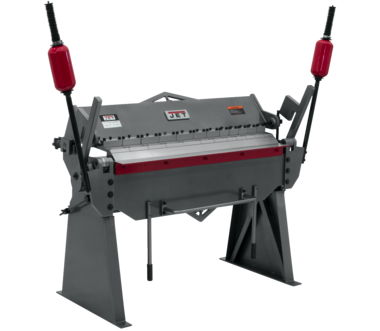

Box and Pan Brakes from JET are perfect for the larger, high
volume shop that requires versatility yet demands rugged
durability and bending precision

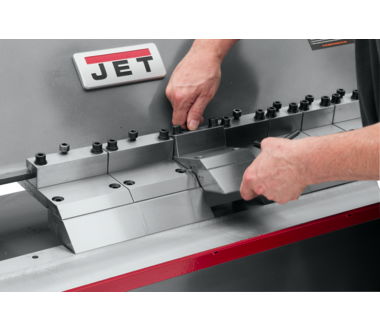

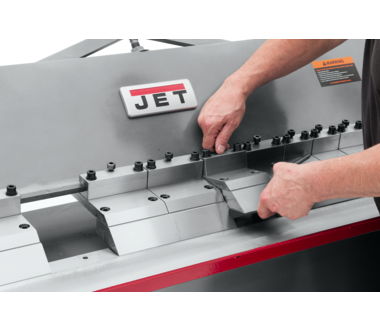

Wide assortment of finger widths allow greater
versatility in the shop
With fingers installed it can be used as a full-length
nose bar, turning the machine into a straight bending brake

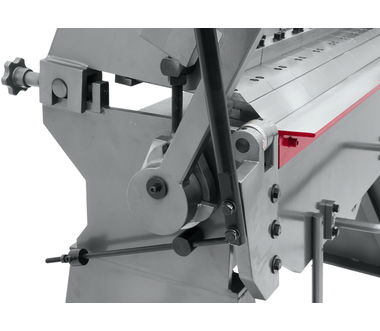

All body sections are welded steel plate with heavy
truss rods and braces designed to give greater strength and
durability
Both the bed and apron are bored in line to assure the
utmost accuracy

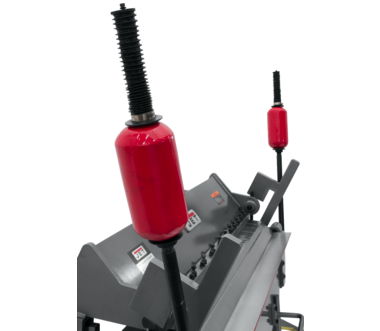

Counter weights can be moved up or down to adjust
desired leverage
Stop rod for repeatable bending
12 gauge maximum capacity for mild-steel
10 gauge maximum capacity for aluminum and copper alloys
16 gauge maximum capacity for stainless steel
2-YEAR FACTORY WARRANTY INCLUDED!!
