Reference Number: 10004

Condition: New

"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description


Table Size  31-3/4" x 9-1/2"
Motor  1.5 hp
X Axis Travel  13-3/4"
Y Axis Travel  7-1/2"
Spindle Nose to Table  17-5/16"
Spindle Speed  90,210,345,670,1180,1970 RPM
Spindle Stroke  4-3/4"
Spindle Taper  MT 4
T Slots  .550"
Coolant Pump  1/8 hp
Power  110V
Shipping Weight  1200 lbs
Drill Capacity  1.5"

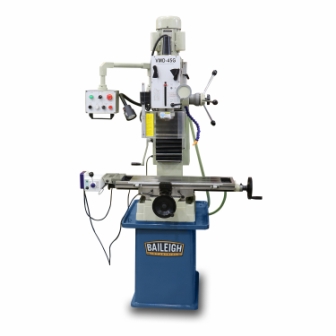

Ever wish you had a milling table on your drill press?
That's why we came up with the VMD-45G. Unlike most milling
machine-drill combinations, this multi-functional vertical
mill drill lets you select the right speed to suit your
application and cut down on tooling wear and tear.

-   1.5 hp motor runs on 110 volt single-phase power,
optimal for any shop, garage, or educational institution.
-   1.75" maximum drilling capacity.
-   31" x 9" milling-style table enables you to tackle a
wider variety of projects (with the right tooling).
-   Table incorporates an X-axis power feed to make those
longer cuts accurately.

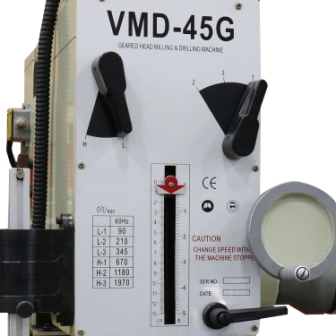

-   Gear-driven head swivels 360.
-   You can choose from 6 speeds to accommodate each mill,
drill or tap size available: 70, 140, 230, 420, 850, 1500
-   Wide steel column houses power-Z lift system and
eliminates flex when you're
    milling or drilling at full capacity.
-   Heavy-duty base, made from a rigid iron casting, adds to
the machine's strength and minimizes vibrations.
-   Comes standard with a coolant system, huge MT4 spindle
taper, and a flexible halogen light.
-   Covered by a 1-year warranty and lifetime technical
support by phone from our team of knowledgeable reps.

Recommended for: Milling, drilling, tapping, boring, and
reaming sheet metal.
