Full Product Description

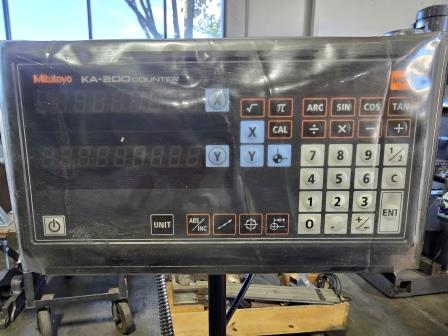

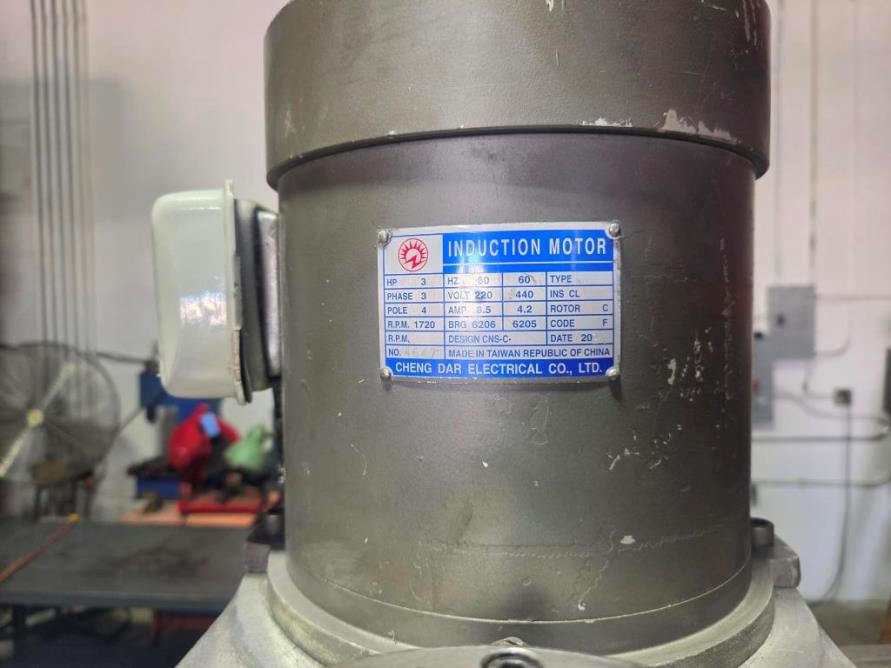

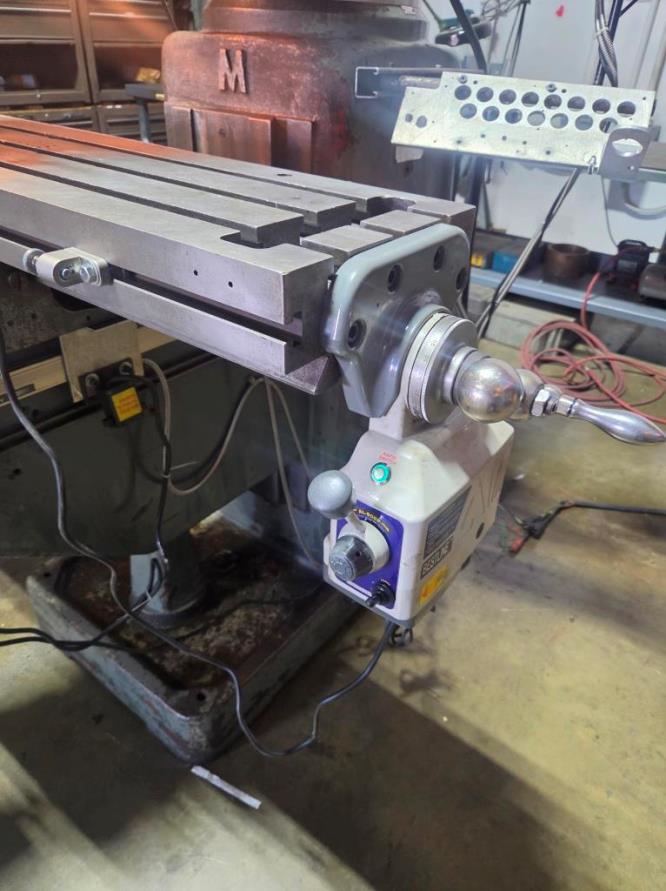

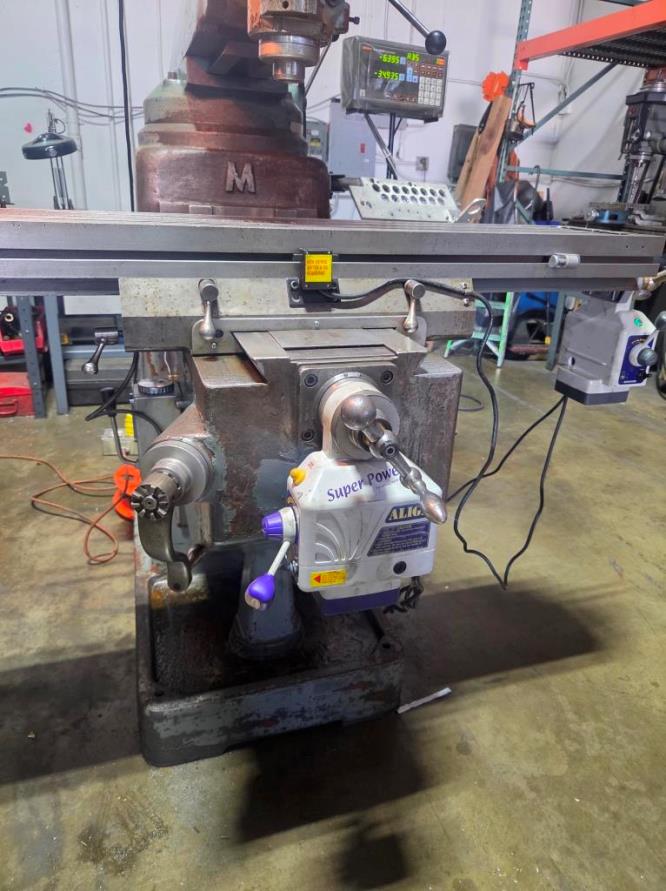

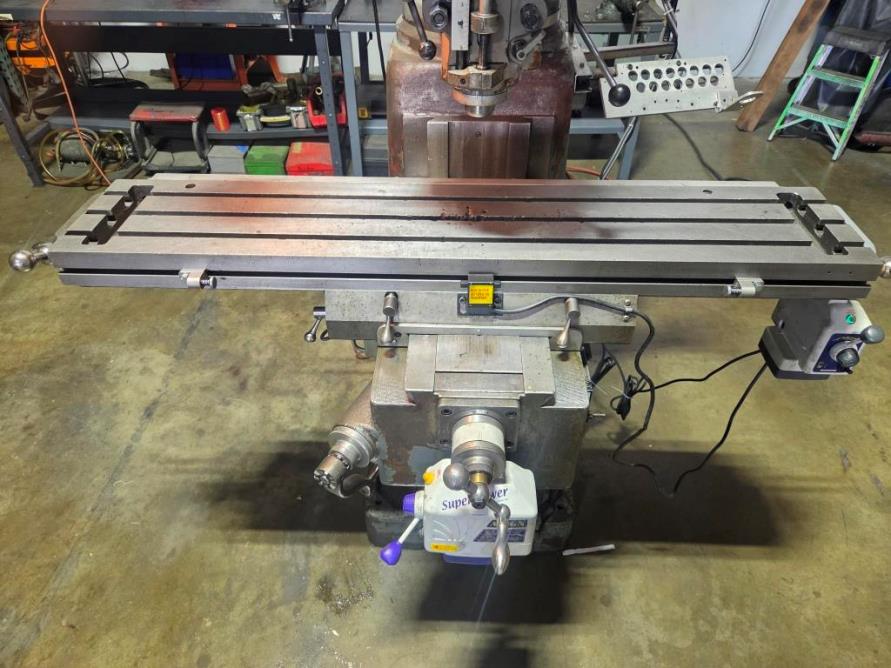

MODEL: KTM-3VS Table size: 10" x 50" On Millpwr Base Spindle motor: 3 HP (1750 rpm @ 60 Hz) Spindle speed: 60-500-4200 (2 range, Hi/Low) Spindle taper: R-8 (NMTB-30 optional) Quill diameter: 3.375" Drilling capacity (manual): 0.75" diameter Drilling capacity (power): 0.37" diameter Boring capacity: 6.0" diameter Milling capacity: 2.0 in3/min Maximum work load (center): 750 lbs Shipping Weight: 2500 lbs Power requirement: 220/440 volts, 3 Ph, 60 Hz, 10/5 Amp Currently wired 220 volt EQUIPPED WITH: * MITUTOYO DIGITAL READOUT * POWERFEED ON X-AXIS * POWERFEED ON Y-AXIS * HAND PUMP LUBE SYSTEM * WORKLIGHT * COLLET RACK FEATURES: * 3HP spindle motor, variable speed head * 9" x 49" hardened & ground table * Table, saddle, and knee with hardened and ground dovetail ways * Precision ground leadscrews with backlash compensating double nut * Precision bored & ground milling head, with super precision ABEC-7 bearings * Meehaniter casting, with built in coolant reservoir in machine base * Centralized one-shot lubrication, with metered check- valves
