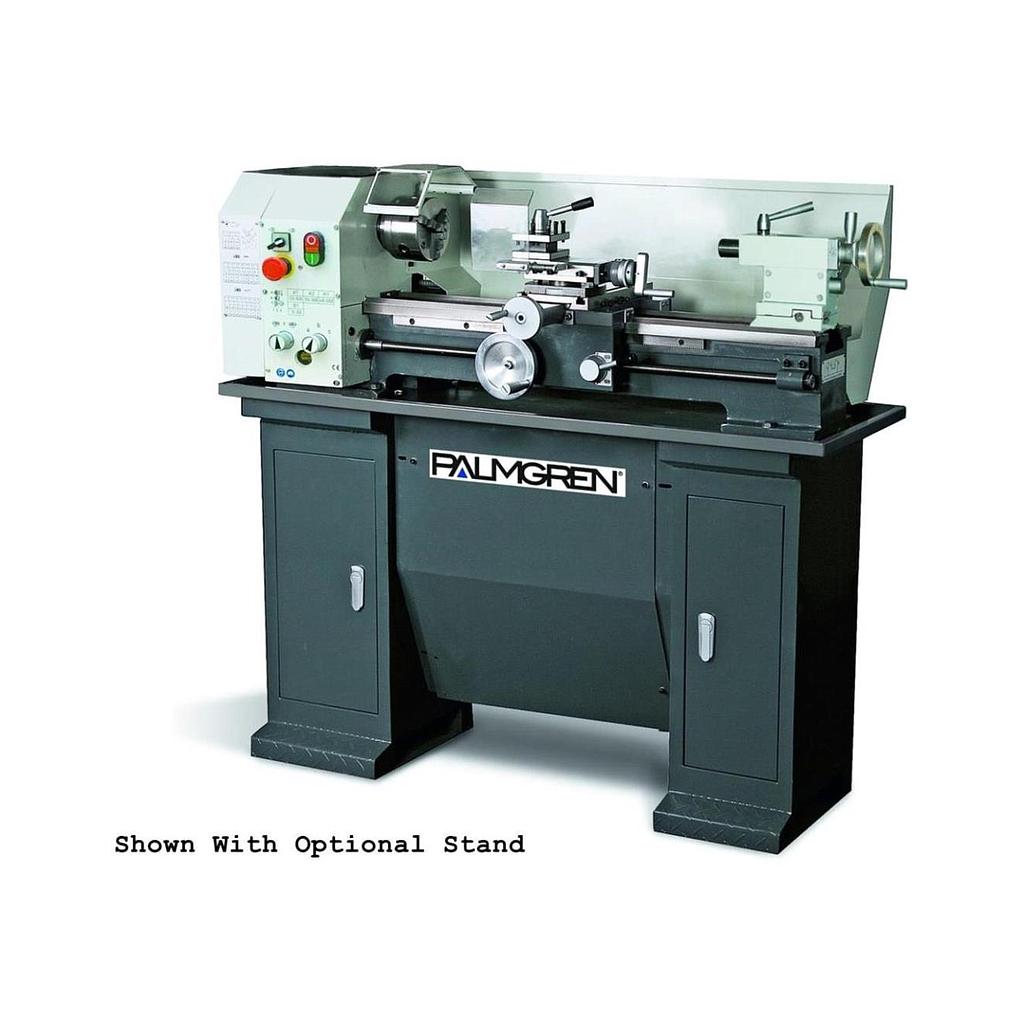

9" x 20" cc, PALMGREN BENCH TOP LATHE, MODEL#9684504, NEW



Reference Number: 10262

Condition: New


"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

MODEL: 9684504

UPC: 726896845043

MOTOR: 1HP / 115V / 60Hz / 1PH
CENTER HEIGHT: 125 mm / 4.92 in
DISTANCE BETWEEN CENTERS: 550 mm / 21.65 in
TURNING DIAMETER (MAX): 250 mm / 9.84 in
MAX SWING OVER COMPOUND SLIDE: 150 mm / 5.91 in
BED WIDTH: 135 mm / 5.31 in
SPINDLE SPEED: 125 - 2000 RPM
NUMBER OF STEPS: 6
SPINDLE TAPER MT: 4
SPINDLE HOLE: 6 mm / 1.02 in
CHUCK SIZE: 125 mm / 4.92 in
TOP SLIDE TRAVEL: 70 mm / 2.76 in
COMPOUND SLIDE TRAVEL: 110 mm / 4.33 in
TAILSTOCK TAPER: MT2
TAILSTOCK SLEEVE TRAVEL: 65 mm / 2.56 in
LONGITUDINAL FEED: .002 in - .012 in
PITCH: 0.2 - 4.0 mm / 56 - 8 in
TOOL HOLDER SEAT HEIGHT: 13 mm / 0.5 in
LENGTH: 1250 mm / 49.21 in
WIDTH: 585 mm / 23 in
HEIGHT: 475 mm / 18.70 in
WEIGHT: 125 kg / 276 lb

Palmgren's 9 inch bench engine lathe delivers the precision,
power and versatility to handle a wide range of turning
operations normally found in much larger machines. Heavy
cast iron construction, smooth power transmission, precision
thrust and ball bearings in the head stock and spindle,
hardened and ground ways all designed to give you years of
trouble-free, precise turning. Built and inspected to the
DIN 8606 toolmakers' precision lathe standard, assuring
accuracy and consistent performance. Be bench lathe is the
right choice for turning small metal parts and is used in
proto type shops, tool rooms, fabrication shops, maintenance
shops, jewelry manufacturing and by home and hobby
machinists.

* Machine tool spindle
* Dual P5 tapper roller bearings on spindle
* Prismatic bed of solid aged cast iron - hardened to HRO
  42-52 for long life
* Fast easy feed speed and direction changes with front
  mounted selector handles
* Feed gear box is constructed of steel gears running in an
  oil bath
* Feed lead screw is supported and runs on two bearings
* Precision machined slide with adjustable hand wheels with
  0.002 in / 0.001 in scales
* Tailstock with adjustable precision scale of 0.02 mm /
  0.001 in
* 3 Jaw lathe chuck
* 4 Way tool post
* Safety lathe chuck and tool post guards
* Centers
* Chip tray and splash guard

COMES WITH PALMGREN 3-YEAR FACTORY WARRANTY!
