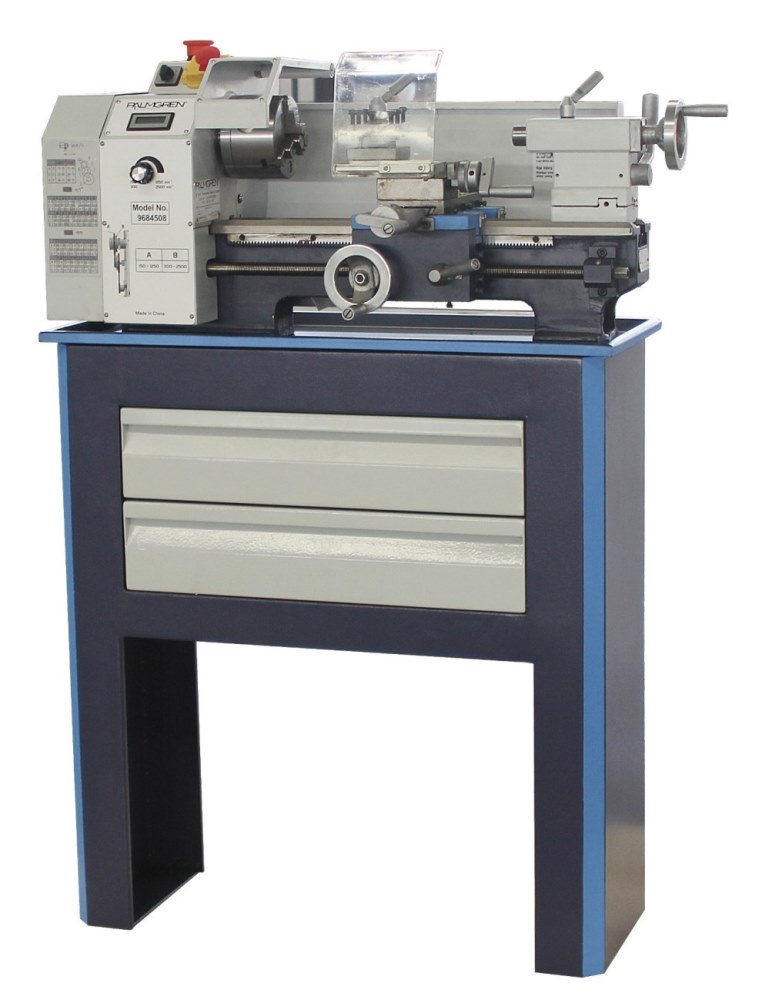

8" x 12" cc, PALMGREN BENCH TOP LATHE, MODEL#9684508, NEW

Full Product Description

MODEL: 9684508

UPC: 726896845081

MOTOR: 7/8HP - 115V - 1PH - 60Hz
SWING OVER BED: 8 in
DISTANCE BETWEEN CENTERS: 12 in
SPINDLE TAPER: MT3
SPINDLE BORE: 3/4 in
NUMBER OF SPINDLE SPEEDS: Variable
SPINDLE SPEED: 150 - 2500 RPM
BED WIDTH: 3-15/16 in
CROSS TRAVEL: 4 in
COMPOUND TRAVEL: 2-1/4 in
CARRIAGE TRAVEL: 10-1/2 in
TAILSTOCK TAPER: MT2
TAILSTOCK TRAVEL: 2 in
THREAD RANGE: 8 in TO 44 in
THREAD RANGE: 13/32 in X 5/16 in
LONGITUDINAL FEED RATES: 0.004 TO 0.008
OVERALL LENGTH:  33 in
OVERALL WIDTH: 16-3/4 in
OVERALL HEIGHT: 3-3/4 in

Palmgren's 8 inch bench model engine lathe delivers the
precision, power and versatility to handle a wide range of
turning operations normally found in much larger machines.
Heavy cast construction, smooth power transmission with
helical gears, hardened and ground ways all designed to give
you years of trouble-free, precise turning.

All Palmgren lathes are build and inspected to the DIN 8606
toolmakers precision lathe standard assuring accuracy and
consistent performance.

The bench lathe is the right choice for turning small metal
parts and is used in prototype shops, home machinists,
jewelry manufacturing, tool rooms, fabrication shops and
maintenance shops.

* 3 jaw lathe chuck
* Safety chuck and tool post guards
* 4 way tool post
* Centers
* Chip tray
* Precision thrust and ball bearings in the head stock

COMES WITH PALMGREN 3-YEAR FACTORY WARRANTY!
