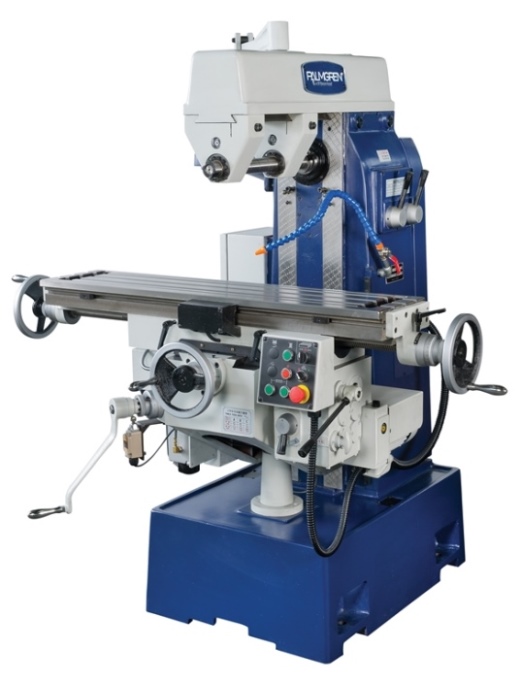

PALMGREN HORIZONTAL MILL WITH VERTICAL MILL HEAD ATTACHED, MODEL#9680163, NEW

Full Product Description

MODEL: 9680163

UPC: 726896801636

HORIZONTAL SPINDLE: 3 HP
TABLE FEED (LONG): 3/4 HP
TABLE RAPID (VERTICAL): 1/2 HP
COOLANT PUMP: 1/8 HP
HORIZONTAL SPINDLE
SPINDLE NOSE: CAT 40
SPINDLE SPEED RMP: 6 - 1100 (6 STEPS)
CENTER TO BOTTOM OF RAM: 115
SPINDLE CENTER TO TABLE: 0 - 6.5 in
SPINDLE
SWIVELLING ANGLE: 45 DEGREES
SPINDLE NOSE TO TABLE: 0 - 3.465 in
CROSS TRAVEL OF RAM: 11.811 in
TABLE SIZE (LxW): 43.307 in x 9.843 in
T-SLOT (WxQty): 5/8 in x 3
TRAVEL (X*Y*Z): 27.5 in x 9.84 in x 17.32 in
LONG FEED RATE/MIN: 0.71 in x 12.6 in
LONG RAPID TRAVERSE/MIN: 41 in
VERTICAL RAPID TRAVERSE/MIN: 11.41 in
MACHINE SIZE (LxWxH): 62 in x 48 in X 65 in
NET WEIGHT: 2200 LBS

Palmgren's universal horizontal milling machine features a
rigid knee and column construction and has the ability to do
either horizontal or vertical milling making it an ideal
solution for just about every milling application.  Equipped
with a power table feed, vertical spindle attachment and a
wide range of spindle speeds this well thought out mill
delivers a wide range of versatility and features making it
one of the most functional manual machining centers that can
operate in all types and sizes of shops.

* Internally ribbed, box column provides maximum machine
  stiffness and vibration dampening
* Precision ground and t-slotted table for an accurate,
  square working surface
* Flame hardened to RC 50-54, precision ground and hand
  scraped ways ensure full bearing support and provide
  ideal lubrication coverage and retention on all way
  surfaces
* One-shot lubrication system delivers metered oil to
  slideways and leadscrews to provide long life and
  reduce maintenance requirements
* Heavy duty 3 v-belt drive system delivers full power to
  the drive gear box and spindle
* The speed gear box is made up of hardened and ground gears
  running in an oil bath
* The table can be positioned by means fo manual hand wheels
  or it is equipped with a gear driven power feed on the
  "X" axis / longitudinal travel. Three speed settings plus
  rapid advance movement provides for increased productivity
  and improved surface finishes on all your workpieces.
* "Z" axis has motorized rapid elevating assist
* A vertical spindle head attachment can transfrom the
  horizontal machine to a vertical machine quickly. The head
  can be disassembled and mounted in position easily via the
  machine mounted vertical head bracket
* The vertical spindle head can be angled 90 degrees to
  right or left of center
* Flood coolant system and chip tray

COMES WITH PALMGREN 3-YEAR WARRANTY!
