14", PALMGREN FLOOR MDL COLD SAW, MODEL#9683131, NEW

Full Product Description

MODEL: 9683131

UPC: 726896831312

HP: 2 AND 3
VOLTS: 230
AMPS AC: 3PH
SPEED: 40 / 80 RPM
ROUND MATERIAL MAX 0: 4.331 in
SQUARE MAX 0: 4.331 in x 4.331 in
ROUND MATERIAL MAX. 45 DEGREE: 4.331 in
SQUARE MATERIAL MAX. 45 DEGREE: 3.740 in x 3.740 in
CUTTING ANGLE, RIGHT/LEFT: -45 TO +45 DEGREES
CUTTING ANGLE ADJUSTMENT: VIA ROTATABLE PEDESTAL
FEED: MANUAL
SAW BLADE DIAMETER: 14 in / 350 mm/ 0 32 mm - 1/14 in
SPAN OF VICE: 5.315 in
DIMENSIONS (HxWxL): 61 in x 25 in x 36 in

Cold saws are ideal for very precise, burr free cuts in low
and high carbon steels and medium gauge tubes and profiles.

The pivot head design allows for fast, accurate miter cuts
and is ideally suited for low to medium volume production
cutting applications. Advanced gear box design utilizing
hardened and ground gears with a high quality bronze worm
gear running in an oil bath. Built in coolant system
lubricates the blade for smooth mill cut finish. A centrally
tensioning anti-burr vises securely clamps the work piece on
both sides of the blade with equal clamping force and holds
the work piece in-between 4 jaw faces. The adjustment of the
saw head for miter cutting is fast and easy with the saw
head pivoting both to the right and left of center.

The 9683130 bench model can use either a 9"/225mm or 10"
/250mm blade.

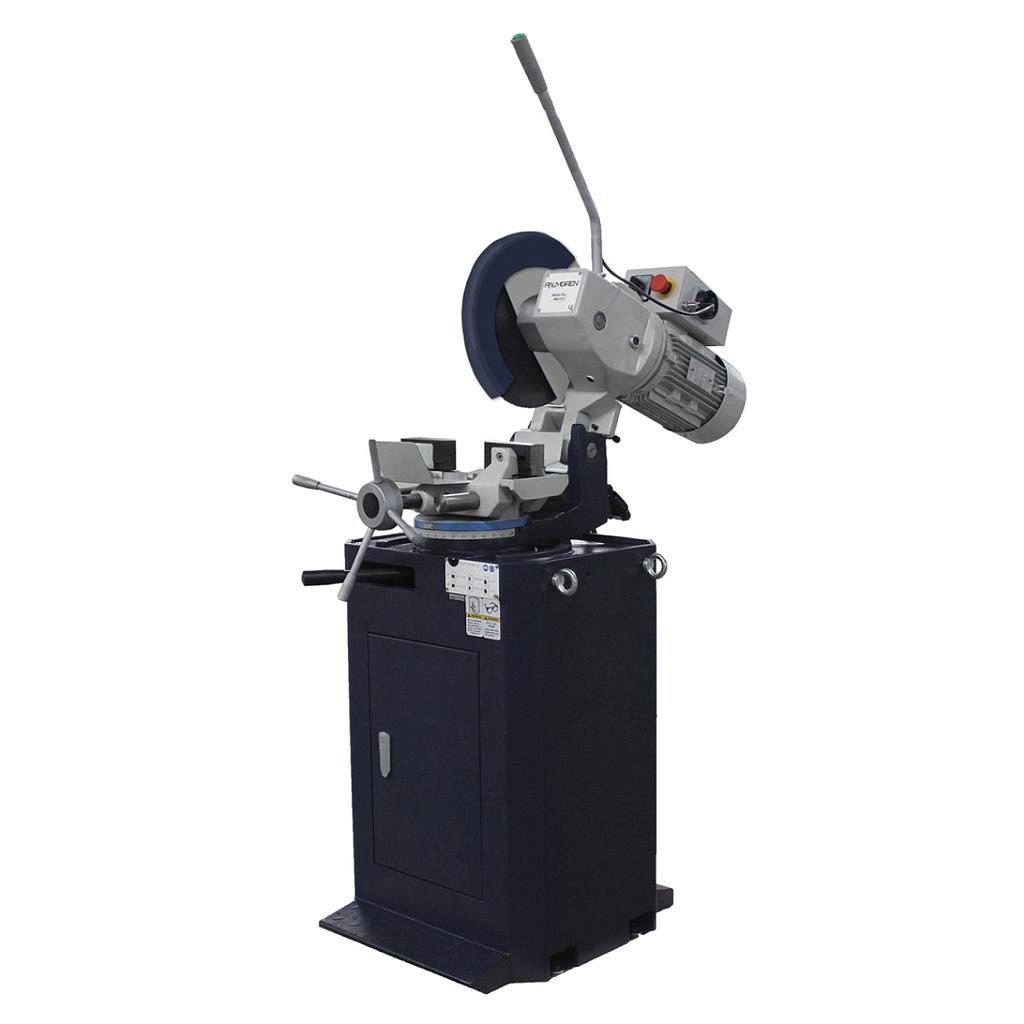

The 9683131 is a floor model with a compact heavy duty steel
base with lockable door and shelf for added tool storage. It
is equipped with a built-in clutch to protect the gear box
and blade from breakage.

These saws are used for cutting off, straight can angle cuts
in solids, tubes and profiles where high accuracy and burr
free smooth finishes are required.

Safety Guard
* Functional, all-surrounded and movable
-----------------------------------------------------------

-----
* Rapid opening mechanism for optimum protection when
  cutting
Vise
* Centrically clamping
* Quadruple guiding
* Individual adjustable clamping jaws
* Cutting is always performed at an optimum position
  towards the workpiece
* Clamping system with 4 levers
* Protected vice spindle coolant pump
Handle
* Long, allows sawing without great force effort
* Integrated switch

COMES WITH PALMGRAN 3-YEAR WARRANTY!
