16" JET EVS VERTICAL TILT-FRAME SAW, MODEL#EVTBS16V-460, 460volt, JET#891210



Reference Number: 10872

Condition: New


"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

MODEL:  EVTBS16V-460
JET STOCK#891210

Blade Size (In.)1-1/16 x 0.035 x 168-1/2

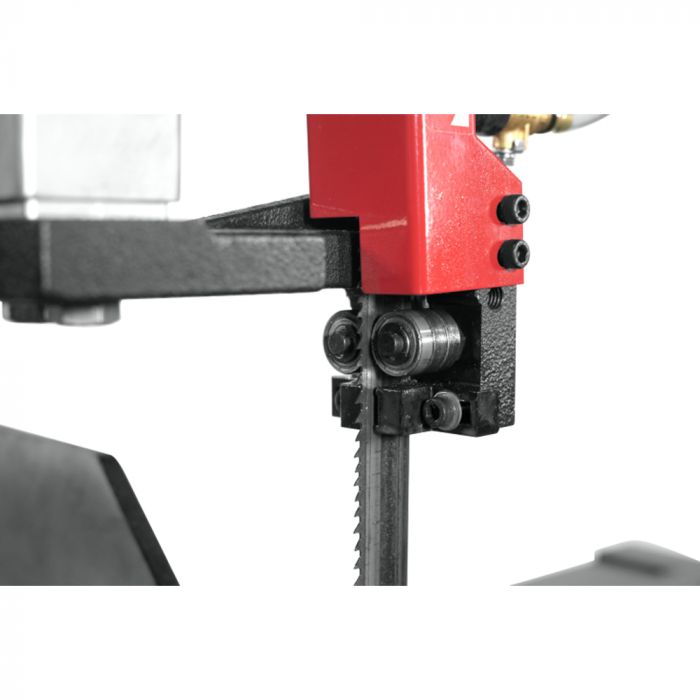

Blade GuideCarbide & Roller
Blade Length (In.)168-1/2
Blade Speed (RPM)76-430 Variable
Blade Thickness0.035
Coolant Pump Motor32W
DriveEVS Inverter Driven
Height (In.)90.5
Maximum Vise Opening (In.)17-1/2
Miter Angle Range (Deg.)45 - 0 - 45
Motor (HP)2 HP, 460V, 3Ph
Overall Dimensions (L x W x H) (In.)94-1/2 x49-1/8 x 90-1/2
Rectangle at 45 Degrees (In.)13-1/4 x 16
Round Stock Capacity (Max.) (In.)16
Shipping Dimensions (In.)94-1/2 x 49-1/8 x 90-1/2"h
Table Length (In.)29-1/2
Table Size (In.)29-1/2 x 14-3/16
Table T-Slot (In.)3/4
Table Width (In.)14-3/16
Throat Depth (In.)16
Weight (Lbs.)1408
Work Height (In.)39-3/8
Speed ControlElectronic Variable Speed
Reservoir (Gal.)60 Litter

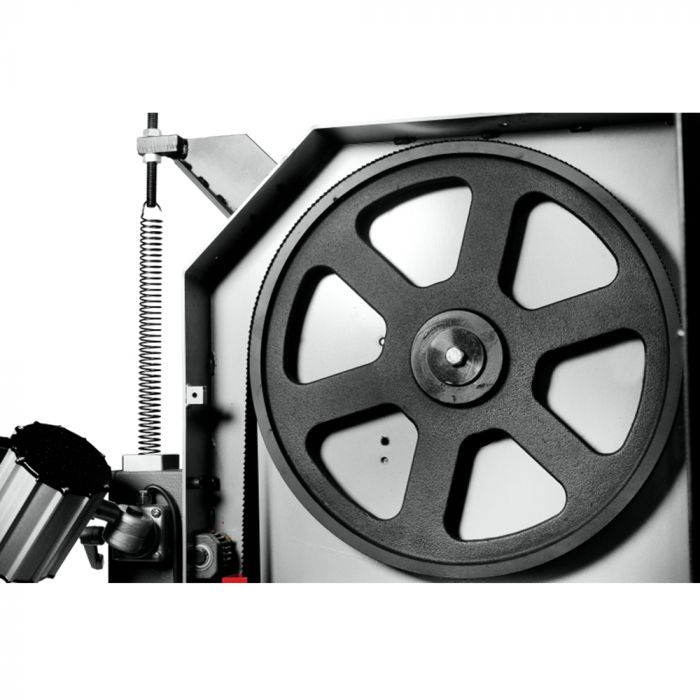

Blade Wheel Diameter (In.)18.11
Round Capacity at 45 Right (in.)13-1/4
Rectangle Capacity at 45 Left (in.) (HxW)11-1/2 x 11-1/2
Rectangle Capacity at 45 Right (in.)(HxW)13-1/4 x 13-1/4
Rectangle Capacity at 90 (in.) (HxW)20 x 16
Round Capacity at 45 Left (in.)11-1/2
Round Capacity at 90(in.)16
Square Capacity at 45 Left (in.) (H x W)11-1/2 x 11-1/2
Square Capacity at 45 Right (in.) (HxW)13-1/4 x 13-1/4
Square Capacity at 90 (in.) (HxW)16 x 16

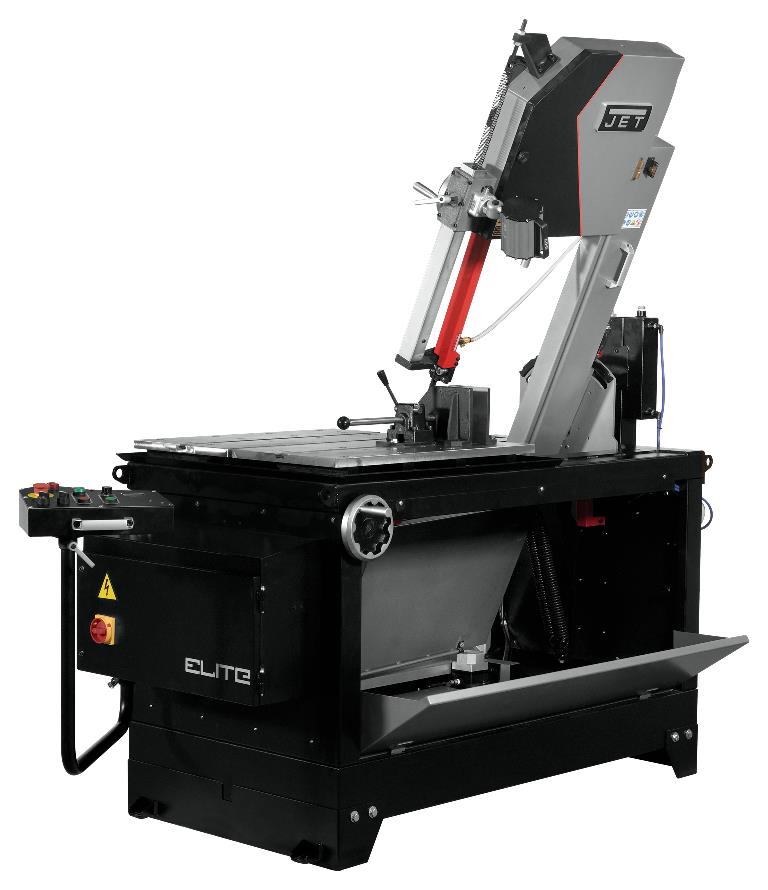

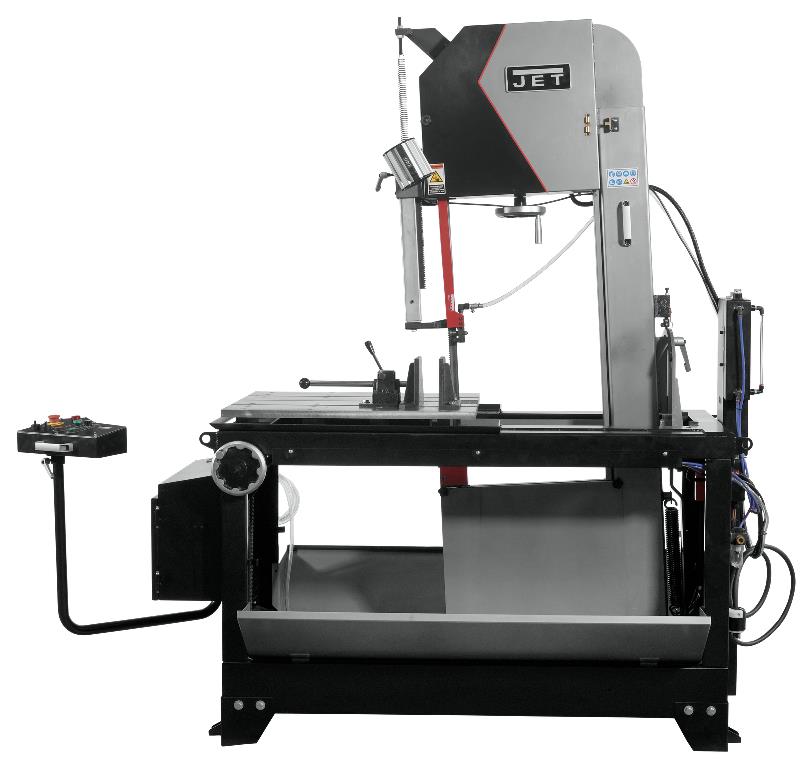

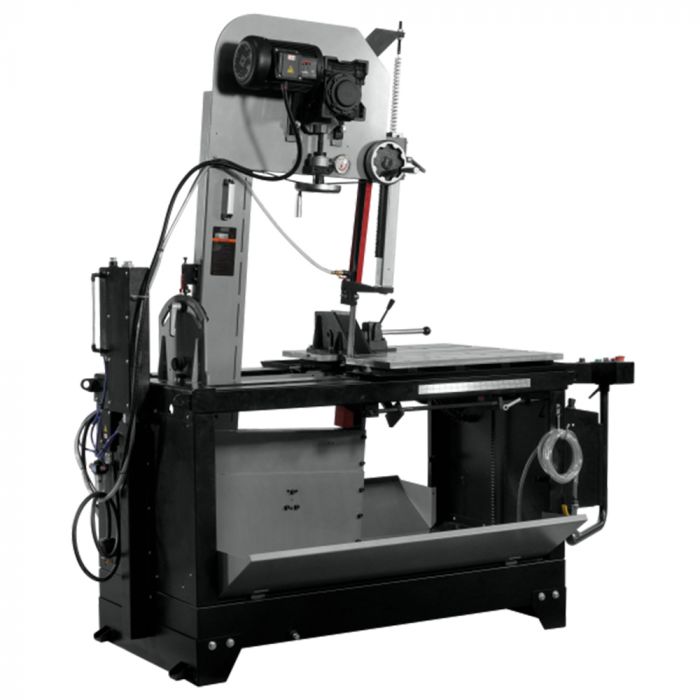

The Elite EVTBS-16" EVS Vertical Tilt Frame Bandsaw is the
answer to your shops needs.The 3 degree forward approach
angle allows for increased efficiency in cutting structural
materials. Inverter drive with speed range of 76-30 SFPM and
a Digital Readout to always let you know what speed you are
at. The quick action vise saves set up time and can be moved
in either the right or left of the blade and fast
locking.Durability is built into the steel frame
construction that reduces vibrations and deflection. Safety
is a must with CSA/US Certification, the blade is fully
guarded and a strong internal spring allows the operator to
safely move the bow and fix at any angle.Elite saws are the
most precise, more durable and safest bandsaws you could
ever have in your shop.

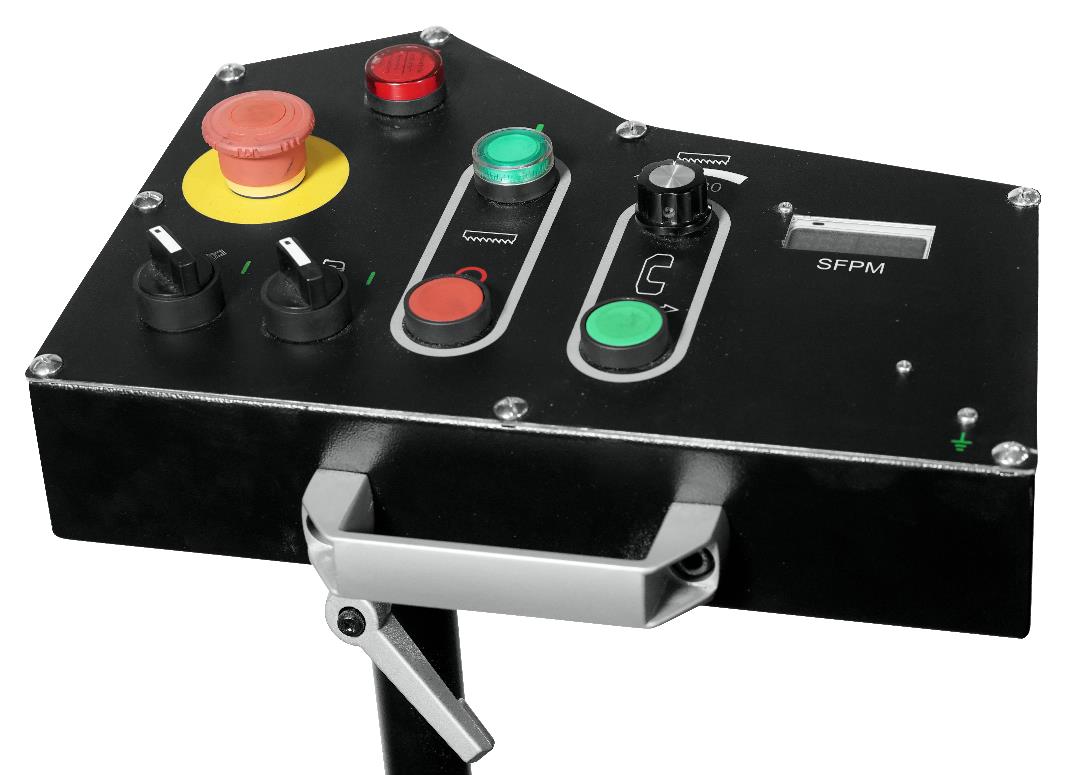

-Electronic Variable Speed 76-430 SFPM with Digital Readout
for FPM
-Blade tension gauge helps to ensure the blade is in the
correct cutting position

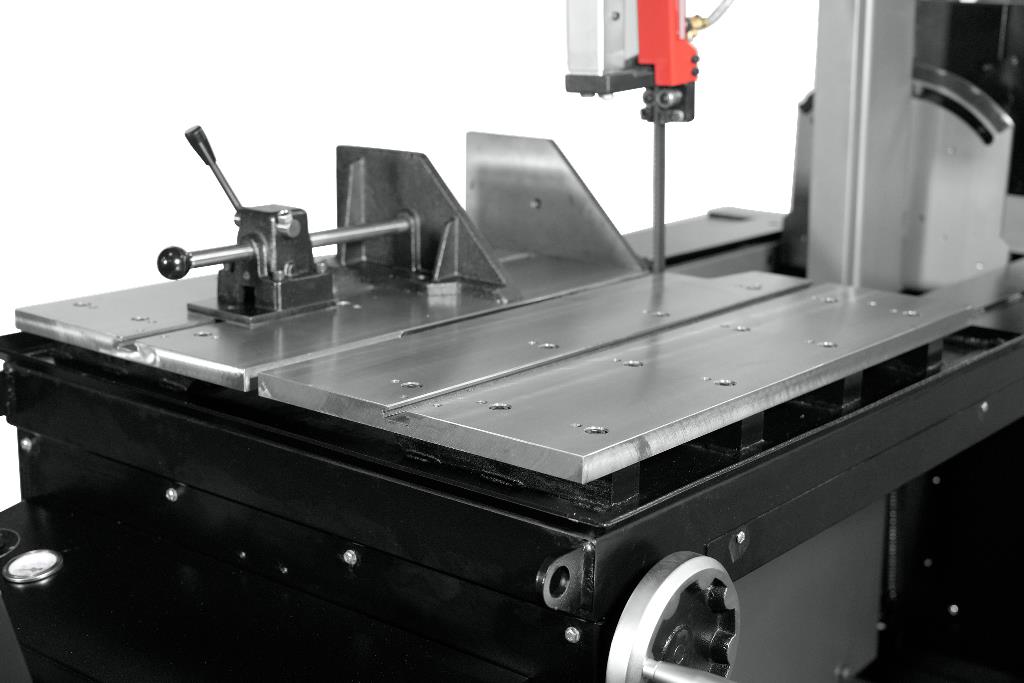

-Quick action vise saves set up time and can be moved to
either the right or left of the blade and fast locking
-Fully adjustable air hydraulic control for bow travel
-3 forward approach angle for increased efficiency in
cutting of structural materials.
-Heavy-duty steel construction reduces vibration and
deflection
-Automatic stops can be pre-set to stop advancement and
return of the blade
-CSA Certified Electrics following strict guidelines and
electrical requirements and are certified by the CSA Group
-Integrated pressurized wash off hose for easy machine clean
up
-Blade is fully guarded for Operator safety


COMES WITH 2-year JET FACTORY WARRANTY!
