Full Product Description

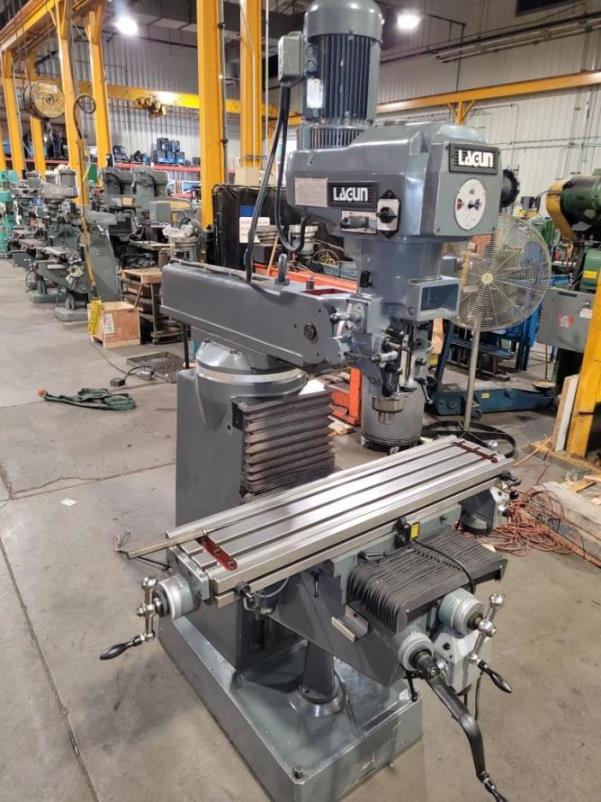

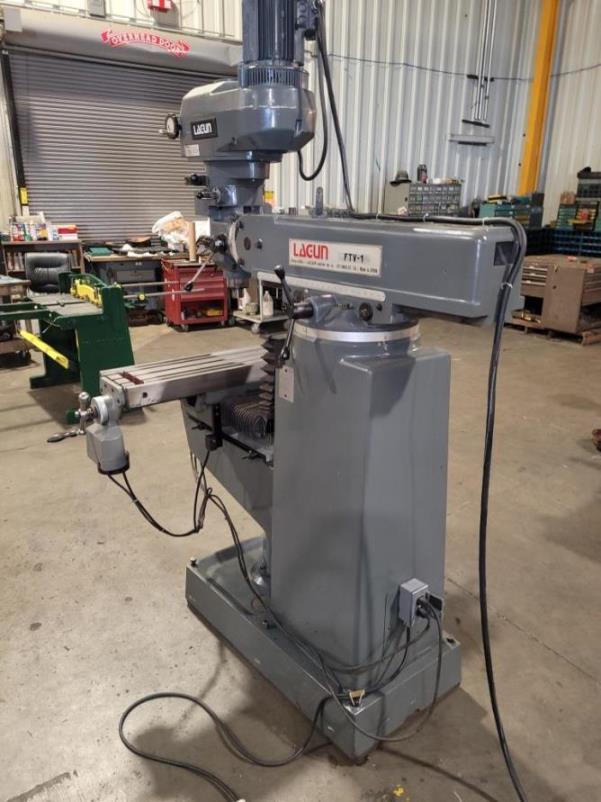

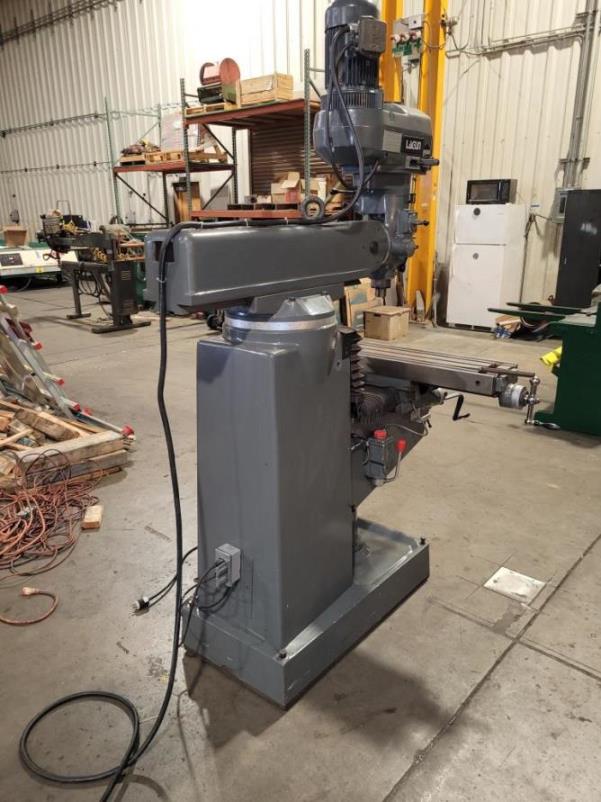

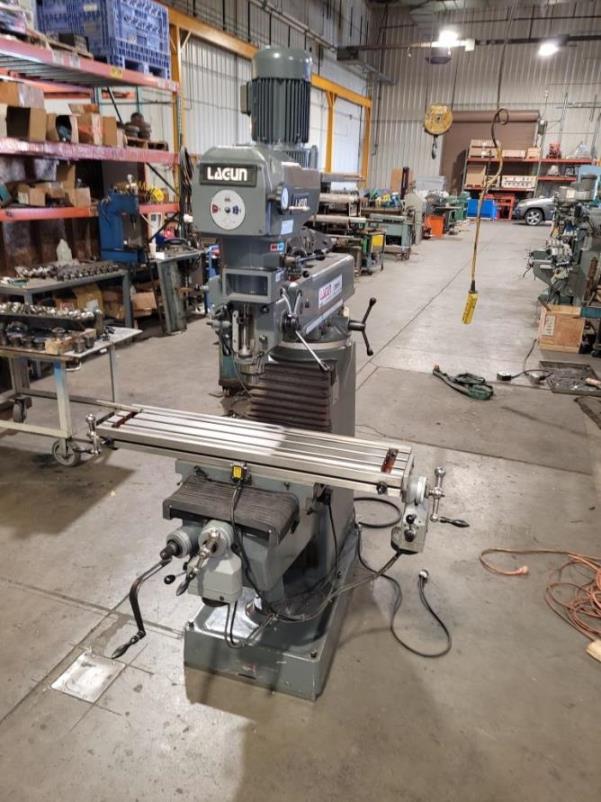

MODEL: FTV-1

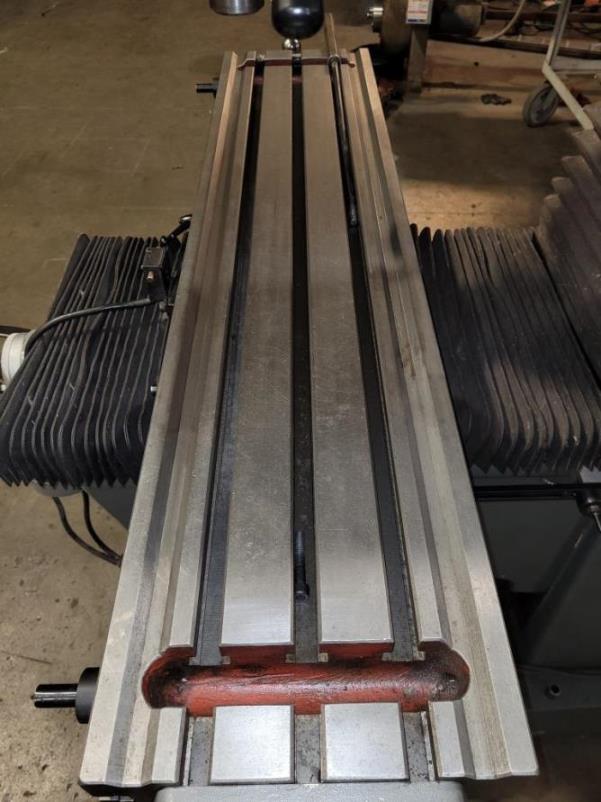

Table Size: 10" x 44"
Table T-Slot (W x No. x Pitch): 5/8" x 3 x 2 1/2"
Weight on Table: 750 lbs. Max.
Table Longitudinal Travel - X-Axisw/power feed: 26"
Table Cross Travel - Y-Axis: 16"
Table Knee Travel - Z-Axis: 16"
Ram Travel: 22 3/16"
Spindle Taper: R-8
Quill Diameter: 3 3/8"
Quill Travel: 5"

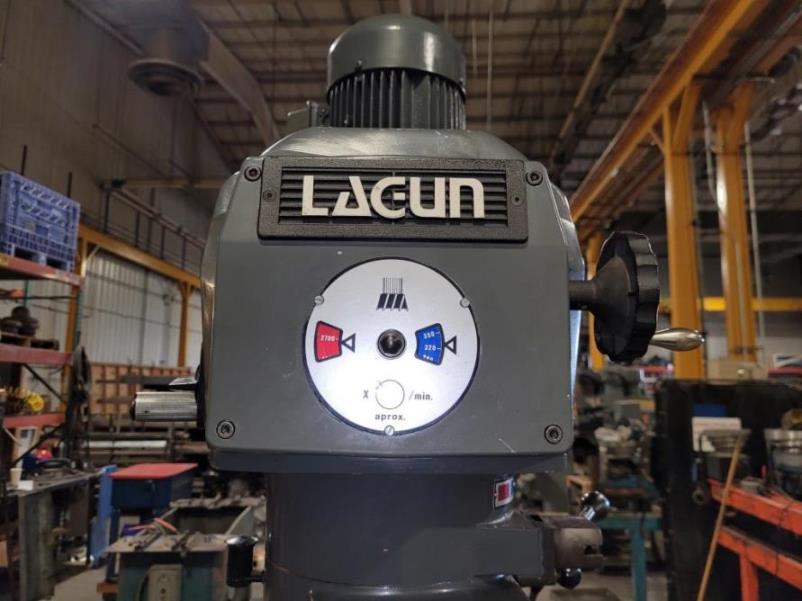

Range of Spindle Speeds: 55 - 4,250 RPM, Variable
Power Quill Feeds: 0.0015", 0.003", 0.006" /Rev.
Head Tilt, Front/Rear: +/- 45
Head Swivel, Left/Right: +/- 90
Distance Spindle to Table: 18" Max.
Distance Spindle to Column: 5" - 27" Max.
Column Turret Diameter, Graduated: 15"
Knee Width: 11 1/2"
Knee to Column Bearing Length: 18"
Saddle and Table Bearing Length: 20"
Ram and Turret Bearing Length: 19"
Ram Length: 36"

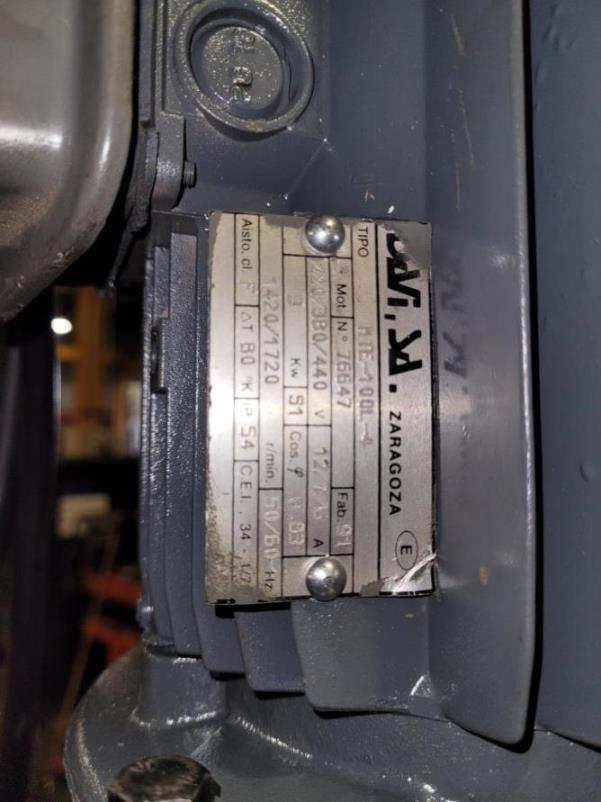

Motor: 3 HP,220/440V, 3 Phase (Currently 220V)
EQUIPPED WITH:

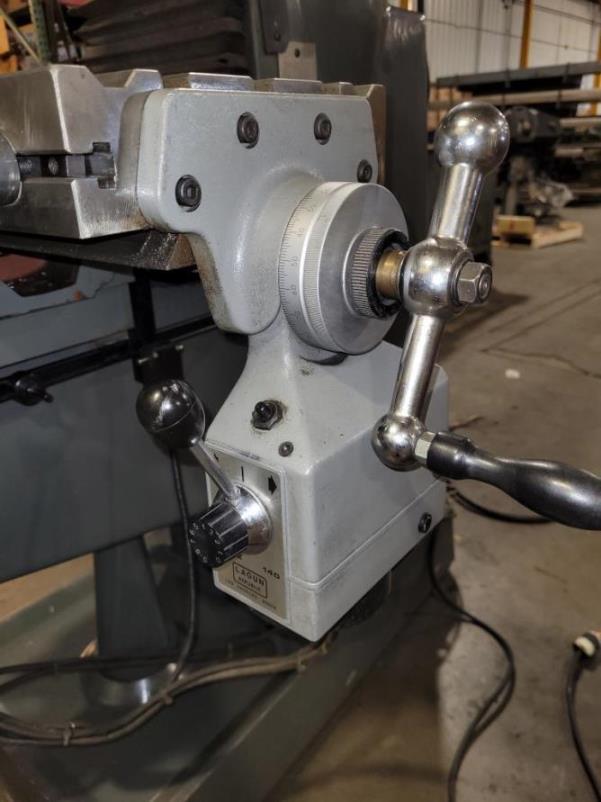

* POWERFEED ON X-AXIS (TABLE)
* POWERFEED ON Y-AXIS
