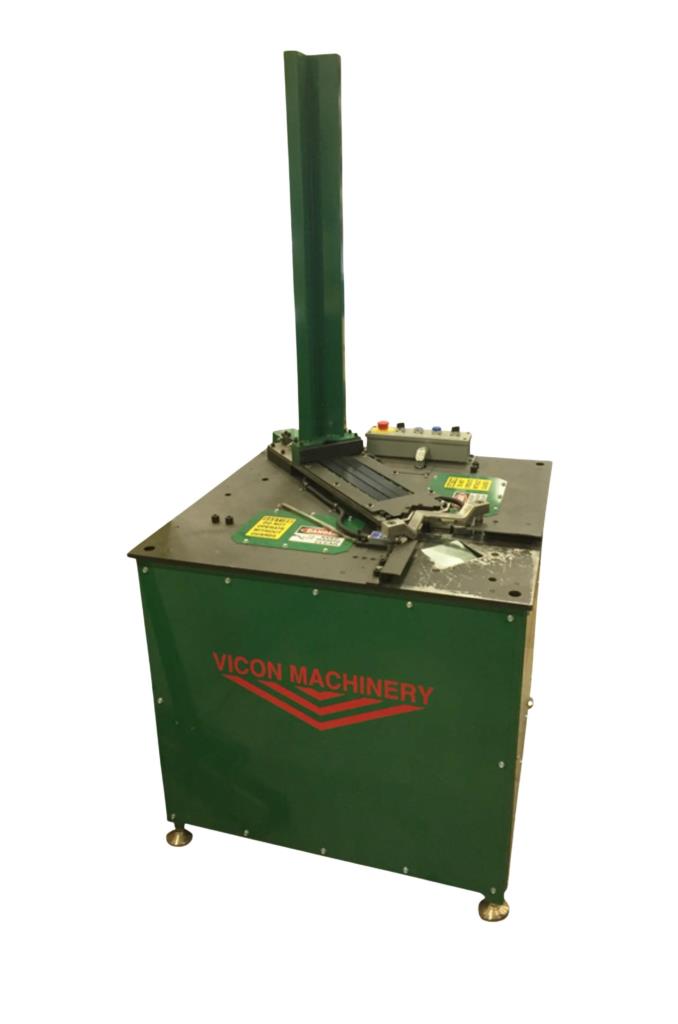

SINGLE HEAD CORNER INSERTION MACHINE, VICON, MODEL#V-SH-CIM-33 **NEW**

Full Product Description

MODEL:  V-SH-CIM-33

Specifications:
Maximum Capacity...............16 Gauge Mild Steel
Minimum Capacity...............26 Gauge Mild Steel
Voltage........................110/1/60Hz
Air Requirements.............. 100 PSI, 3 CFM
Dimensions (Base only)....... 35-3/4" x 35-3/4" x 33"min.
(Width x Depth x Height)
Duct Connector Styles..........TDXtm, TDFtm, TDCtm

The Vicon Single Head Corner Insertion Machine is built with
a robust frame structure specifically for inserting flanged
duct fittings at single corners. It is compatible with
various brands of TDXT, TDFT, TDCT stackable corners and is
equipped with standard tooling for 16-26-gauge ducts. The
machine offers interchangeable tooling with quick changeover
for different flange types. It requires 100 PSI air pressure
for 16-gauge processing and is designed for customizable
operator working height, whether placed on a tabletop or in-
ground/pit placement.


FEATURES AND BENEFITS:
-Standard tooling designed for 16-26-gauge mild steel duct
-Tabletop or In Ground Design
-Heavy-duty frame structure design
-Utilizes various brands of stackable corners
-Interchangeable tooling available for various flange types,
  if required
-Air requirement: 100 PSI for 16-gauge material
-Tooling designed for quick changeover
-Voltage: 110/1/60Hz
-Manual or Auto Push Button controls
-Duct Connector types TDX, TDF, TC


OPTIONAL:
-LOW PROFILE (23" HEIGHT) DESIGN AVAILABLE FOR PIT
INSTALLATION.  PEDESTAL CONTROL INCLUDED.

-ANGULAR CORNER CHUTE IN ADDITION TO THE STRAIGHT STYLE.

-ADDITIONAL MODIFIED TOOLING FOR SPECIALTY CORNER
(SUBJECT TO VICON ENGINEERING APPROVAL,
SAMPLE CORNERS MAY BE REQUIRED)



VICON MACHINES ARE MADE IN THE U.S.A.!!
