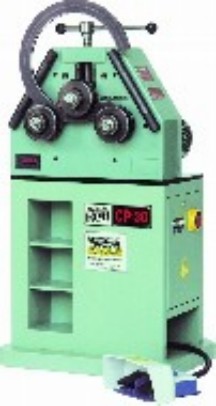

EAGLE CP-30-PRM UNIVERSAL ROLL BENDER **NEW**

Full Product Description

MANUFACTURER:   EAGLE
MODEL:   CP-30-PRM(NEW)
# OF ROLLS DRIVEN:   2-ROLL DRIVEN
POSITION:   HORZ OR VERT.

CP30PR  Pipe 1-1/2" / Angle 1-1/2 / Flats 3" / Tube 2-3/8"

CP30PR is probably the most used section bender in the world

and is equipped with LED digital displays to monitor the

bending roll and aid in precise positioning for greater

accuracy in rolling.  The unit uses the Powerful Pyramid

Geometry with lower rolls driven and fixed in position and

the top roll adjustable to obtain different bending

diameters.  Universal tooling supplied in 18 components

permit bending of most all standard sections.

R= Rapid Rotation of bending head to operate in
VERTICAL or HORIZONTAL positions!

STANDARD FEATURES
* LED Digital Display to monitor top roll position
* Hardened Universal Rolls, New Design more versatile
* 3 Way Adjustable Lateral Guides
* Heavy Duty Cast Steel Foot Pedals with
* Disappearing Flush Faced Design
* Automatic Top Roll Locking Pin for EASY tooling change out
* Higher Rolling Speed & Heavier Machine Weights
* Low Voltage Controls
* Thermal Motor Overload Protection
* Siemens brand motor controls
* Patented Z-block top slide block on adjustable gibs

Add $100 FOR Single Phase Power Option
