Full Product Description

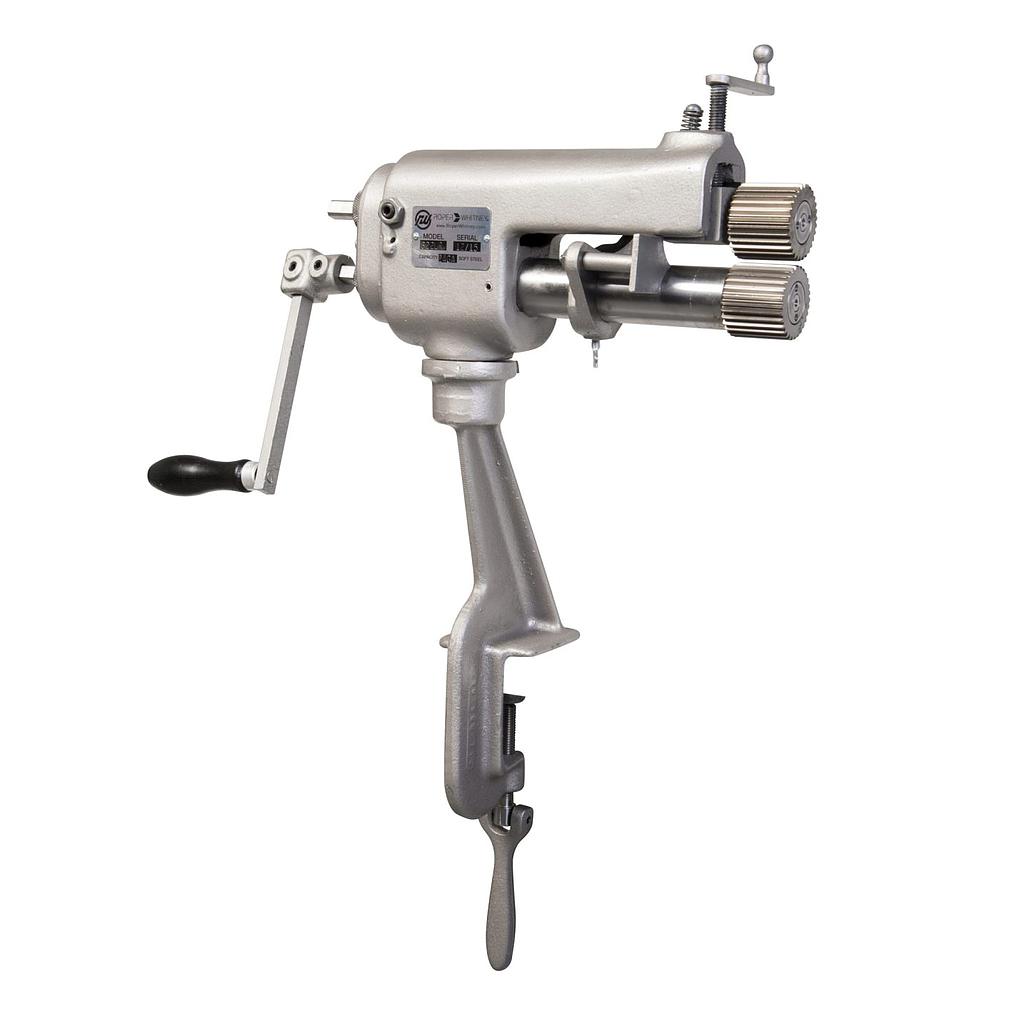

Model: 622
Capacity: 24 ga. Mild Steel
Throat: 7"
Weight: 50 lbs.
The No. 622 Series is equipped with the addition of a 7"
deep throat for additional forming capabilities, such as

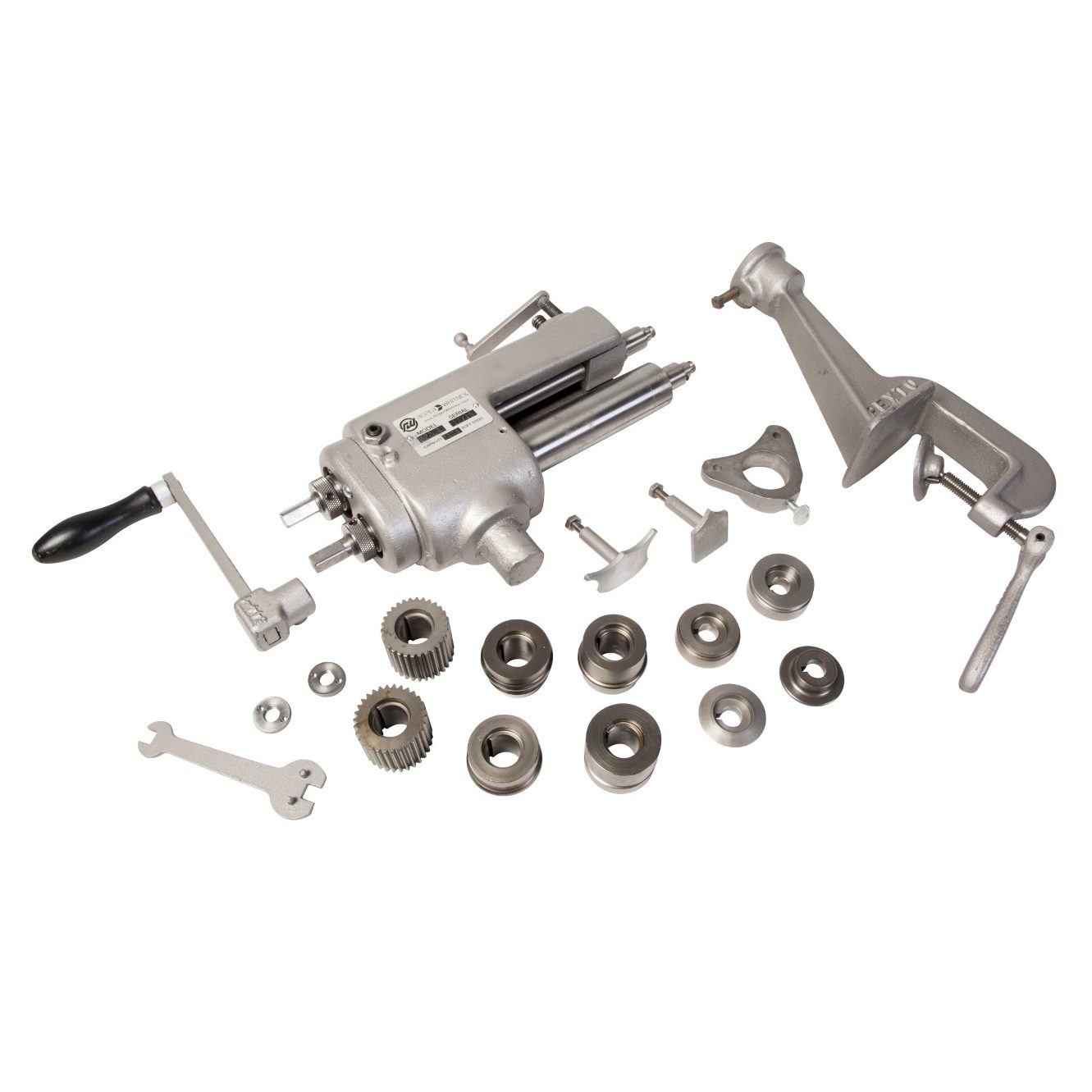

furnace collar edging. The Model No. 622 includes a set of
rolls (A, C, D, E & F) and gauges or may be ordered without
rolls as Model No. 622LR*. A number of rolls may be ordered

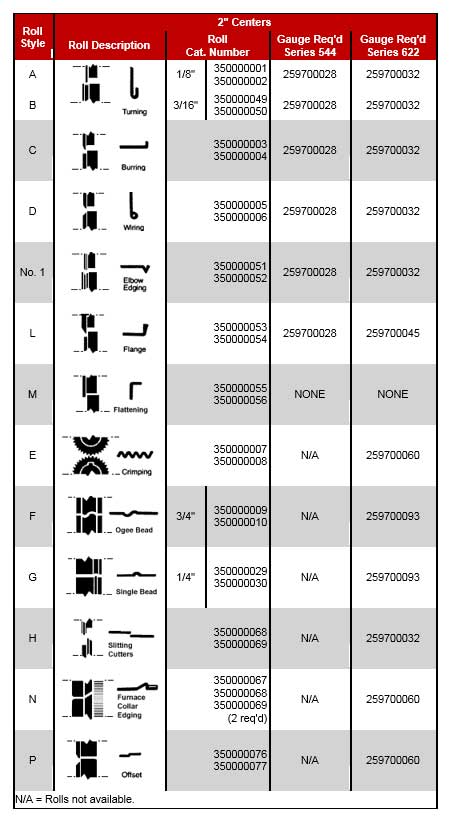

separately from the Roll Chart to use with this machine.

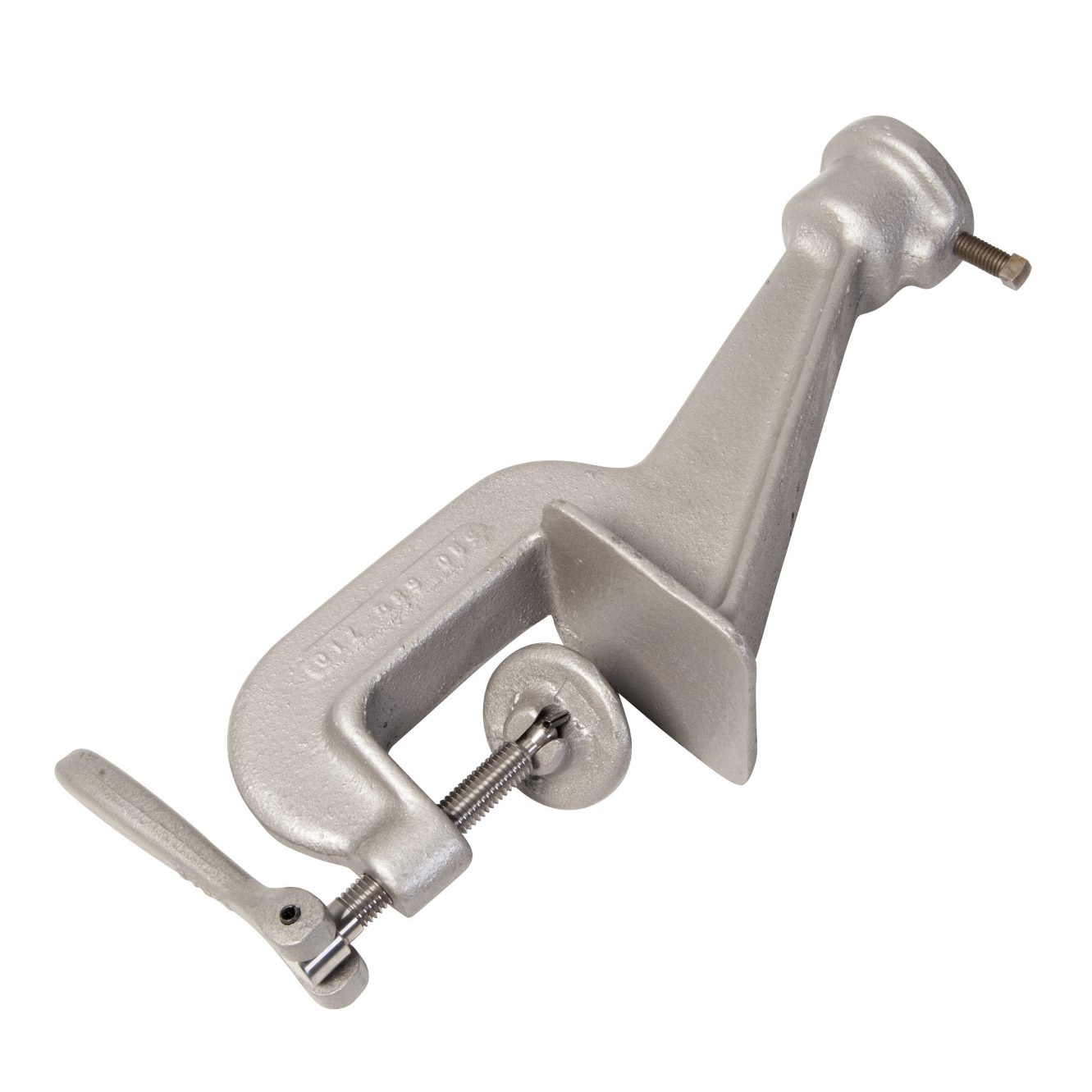

No. 622 Series machines include No. 975 clamp-on offset
base.
INCLUDES:

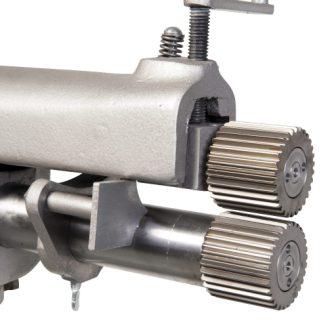

* (A) 1/8" Turning Rolls
* (C) Burring Rolls
* (D) Wiring Rolls
* (E) Crimping Rolls
* (F) 3/4" Ogee Bead Rolls
* Gauges
* Bench Base
MADE IN THE USA!!
** NOTE: THIS PRICE BELOW IS F.O.B. SCOTT MACHINERY **
Send us an email request if you need the list of all
the extra optional roll set profiles available!
