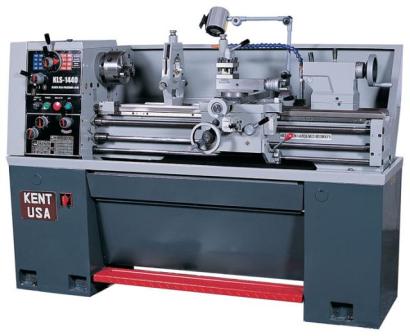

14" x 40" cc, KENT ENGINE LATHE, MODEL#KLS-1440 **NEW**



Condition: New


"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

Model:  KLS-1440
Swing over bed:  14" (356 mm)
Swing over cross slide:  8-5/8" (220 mm)
Swing over gap:  20" (506 mm)
Width of bed:  8 1/8" (206 mm)
Distance between centers:  40" (1000 mm)
Cross slide travel:  7" (180 mm)
Top slide travel:  4" (100 mm)
Spindle speeds:  16 speeds (2 ranges)
Spindle speed range:  45-1800 RPM
Through hole diameter:  1-1/2" (38 mm)
Spindle nose:  D1-4 camlock
Spindle bore taper:  MT #5
Standard (Whit-worth):  40 (4-112) TPI
Metric pitch:  22 (0.45-7.5) MM
Longitudinal feeds:  0.0012"-0.0294" IN/REV
Cross feeds:  0.0004"-0.0108" IN/REV
Leadscrew diameter:  7/8" (22 mm)
Thread pitch:  8 TPI
Quill travel:  4-3/4" (120 mm)
Quill diameter:  1-25/32" (45 mm)
Quill bore taper:  MT #3
Main motor:  3 HP (2-speed, 3-phase)
Coolant pump motor:  1/8 HP (3-phase)
Overall dimension:  76" x 29" x 47" (LxWxH)
Packing dimension:  80" x 35" x 61" (LxWxH)
Net weight:  1650 lbs
Gross weight:  1950 lbs
Power Requirements: 220 Volts, 60 Hz, 3-Phase, 10 Amp.


SPECIAL ACCESSORIES PACKAGE  --  INCLUDED WITH LATHE -- NO
EXTRA CHARGE!
3-jaw chuck (6"), 4-jaw chuck (8"), Face plate (12")
Steady rest, Follow rest, 4-position tool post
Coolant system, Full-length splash guard, Worklight
Micro carriage stop, Thread chasing dial
Toolbox with standard tools


FEATURES:
* 3 HP main spindle motor
* 16 speeds, all geared headstock
* Jog button for easy gear changes
* Hardened and ground gears and bedways
* Cast iron machine bedways and base
* Removable chip pan for easy clean up
* Foot brake and T-Slot compound Inch/metric reading on
dials
* Inch/metric ruler on tailstock quill
* ISO 9001 certified manufacturer

OPTIONS AND ACCESSORIES:
Acu-Rite 200S DRO (2-axis, x=0.0001"/z=0.0002" res)



Mitutoyo DRO (2-axis, x=0.0002"/z=0.0005" res)
DRO installation charge

Aloris BXA #2-BS set (tool post plus 4 bars)
5C lever style collet closer
Royal spindle type live center
Live center set with interchangeable tips
BTC 3-jaw chuck w/back plate (Zero-set, 6" D1-4)

BTC 3-jaw chuck w/back plate (Zero-set, 8" D1-4)
Transformer for 440v power (3 KVA)
3HP Phase converter for single phase power (rotary-type)
Prolong Ultra-Cut coolant (2.5 gallon, mixes 1:30)
Prolong Anti-Friction lubricant (1 quart, mixes 1:10)


*Please note:  Installed options may require a deposit,
which is non-cancelable and non-refundable.
