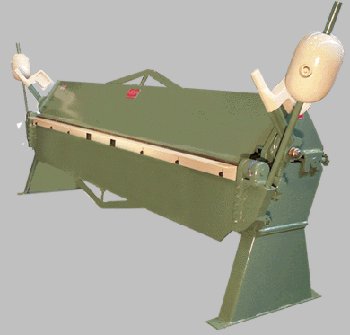

16 Ga. x 10', CHICAGO APRON BRAKE, MODEL#SB1016 **NEW**
Reference Number: 4805
"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it." Henry Ford
Full Product Description
Model: SB1016 Bending Length: 10' Capacity (Mild Steel): 16 Gauge** Capacity (Stainless): 20 Gauge** Dimensions: 163"L X 53"W X 64"H Approx. Weight: 3400 lbs. STANDARD EQUIPMENT: * Removable Nose Bar * Bolted Bottom Bar * 1/2" Insert Bar * Angle Bar * Stop Gauge ** Bending capacity is achieved when using the angle bar in the high position and forming a 1" minimum flange on capacity material. Use of the 1/2" insert bar with the angle bar in low position reduces the capacity of the brake four gauges. Use of the optional 1/4" insert bar with the angle bar in the low position reduces the capacity of the brake seven gauges.
