Specific Info On This Equipment

Reference Number: 6726

Condition: New

"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

Model:  TN-300
Notching Capacity (OD):  5/8" - 3"
Angle Adjustment:  0 - 220
Power:  1/2 HP
Shipping Weight:  265 lbs.
Shipping Dimensions:  48" x 31" x 31"

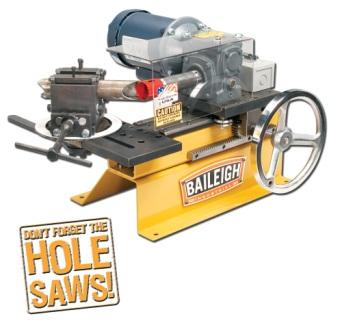

The TN-300 pipe notcher from Baileigh Industrial is the best
production hole saw notcher on the market today.  This 110
volt notcher is built using only the best components.  The
idea of the TN-300 was to get rid of the hand drill and make
a better tool for the fabricators.  By building a rigid base
and tying all the components together, we were able to
reduce vibration created from the hole saw itself as it went
through the material.  Next we locked in the RPM of the saw
to 177 rpm.  This speed seemed to give the best combination
of saw life and speed of cut.  Both of these items helped
make a more accurate cut and increase the life of the saws,
saving time and money.

The TN-300 can notch from 1/2" to 3" tube and 1/2" to 2-1/2"
Schedule 40 Pipe.  The vise has a quick release so different
notch angles can be set up in a second or two and locked in
with a solid taper lock.  A large degree wheel for indexing
the vise is also included.

Operation of the TN-300 is easy.  Turn it on, grab the hand
wheel and rotate it toward the material. The carriage rides
on a solid V-block roller assembly that pushes the hole saw
into the material with limited vibration and ease. This
simple unique design on this tube notcher makes notching
tube and pipe easy.
