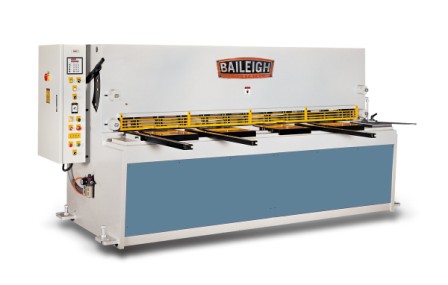

1/4" x 10', BAILEIGH HEAVY-DUTY HYDRAULIC SHEAR, MODEL#SH-12003-HD **NEW**
Reference Number: 6770
Condition: New
"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it." Henry Ford
Full Product Description
Model: SH-12003-HD Back Gauge Length: 31.50" Shear Length: 120" Motor: 20 hp Thickness (SS): 1/4" (7 ga.) Strokes Per Minute: 20 - 30 Front Gauge Length: 39.37" Blade Angle: 1/2 - 2 Adjustable Blade Gap Adjustment: Manual, Lever Acuated Power: 220V / 3-phase Shipping Weight: 15,400 lbs. Shipping Dimensions: 158" x 70" x 85" DESCRIPTION: If you are looking for the highest quality, most reliable " mild steel hydraulic shear on the market, you have just found it. The SH-12003-HD hydraulic shear from Baileigh Industrial is built for years of heavy cutting production. It can cut 10' wide sheet metal with a thickness up to 1/4" thick all day long. The SH-12003-HD comes has an upper blade carriage that rides in a 3 axis bearing housing that runs on a heavy duty precision ground and hardened rail system for unbeatable accuracy and longevity of blade life. The frame uses plate steel that is fully welded for the most stability possible. Operation of the SH-12003-HD is handled through an NC controller and foot pedal. The controller allows for programming of the back gauge to make the best use of each piece of steel. To ensure the material is position correctly, the back gauge positioner that rides on a screw ball rail system and uses an encoder for accuracy. The SH- 12003-HD hydraulic shear also comes standard with a simple to operate control panel including the rake adjustment, jog/run/stop controls, program pad for the back gauge, production counter, and much more. The SH-12003-HD is also good for the lighter gauge materials; a quick change blade gap adjustment is included as well. The SH12003-HD is made for years of use and uses only the best components.
