Reference Number: 6838

Condition: New

"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

Model:  TN-250
Notching Capacity (OD):  1/2" - 2 1/2"
Angle Adjustment:  0 - 220
Power:  1/2" (12.7 mm) Hand Drill
Shipping Weight:  50 lbs.
Shipping Dimensions:  24" x 12" x 12"


Ever have to notch tube in an awkward place, like say on a
bend?  Well good luck getting a tight clamp with the
conventional tube notchers on the market.  Baileigh
Industrial took this challenge head on and came up with what
many claim to be the best hole saw tube notcher on the
planet, the TN-250.

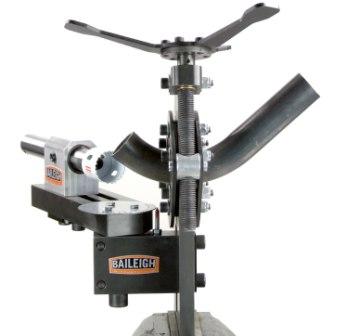

The TN-250 tube notcher is like nothing that you have seen.
The life blood of the notcher is the unique self centering
radial vise that allows the operator to clamp down on tubes
and more in any direction, including in the middle of a
bend.   Also by using a truly self centering vice, the TN-
250 is the only hole saw tubing notcher that is always
centered left to right and up and down, no matter what size
tube or pipe you have.

But, the vise is not the only thing that set the TN-250
apart from the competition; the back bone is made from heavy
duty _" steel plate and all component inter lock to create a
very rigid platform to reduce vibration and prolong the life
of the hole saws.  The shaft of the TN-250 is a 1-1/4"
Thompsonr shaft that rides in sealed and oiled needle
bearings.   Unlike other tube notchers in this category, the
two ends of the shaft are completely replaceable.  This
helps save time and money.

The TN-250 hole saw tube notcher can notch up to 2-1/2" OD
and allows large degree angles. The notching carriage can
pivot up to 230 degrees allowing the operator to come from
the "back side" of the notch.   A large degree plate helps
get these back side notches lined up.  The TN-250 also has a
fully adjustable axis to accommodate almost any notch
combination considering the pivot moves left to right up to
230 degrees, there are two slotted mounting rails for almost
any position of the bearing block, and finally we have the
easily adjusted position for up and down.
