Full Product Description
Model: 4000
CAPACITIES:
@ 90 Degrees:
Round: 13-1/2"
Pipe: 12"
Flat: 22"
W/ Tube: 13"H X 16"W
@ 45 Degrees:
Round: 13-1/2"
Pipe: 12"
Flat: 14"
W/ Tube: 13"H X 13"w
Blade Speeds: 75-195 FPM
Blade Size: 15' X 1-1/4" X .042
Head Pressure: Hydraulic Cylinder
Vise: Quick Adjusting Screw Type
Shut Off: Automatic
Motor: 2 H.P., 220 Volt, Single Phase standard
Or Three Phase, 220/440/460/480/575 on request
Shipping Weight: 1250 lbs.
Dimensions: 90"L x 44"w x 50"h
Table Height: 29-3/8"
FEATURES:
* Head moves left or right for angle cutting
* Built in protractor for fast and accurate selection of
angles
* Stock remains in one position for all cuts
* Removable chip tray
* Sealed oil bath worm gear
* Construction: Heavy steel, welded and machined for
accuracy and durability; (14) sealed ball bearings.
* Table back extension 7" Standard
* Air cooling system Standard
* Flip Nut SCREW Vise Standard on Models 3000 and 4000
OPTIONAL ACCESSORIES:
Stock gauge with micro-adjuster

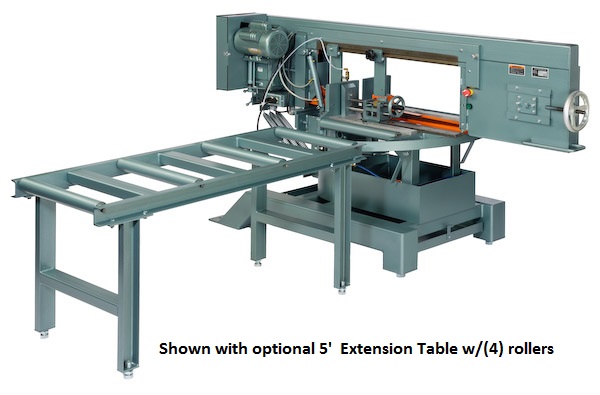

5' Stock support extension, 5' with (4)HD rollers
Single stock support stand with one roller, movable
Camlock Vise with PIpe Clamp
