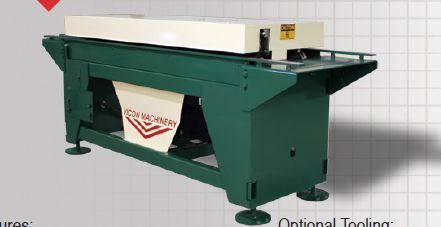

12 STND, VICON TDX ROLLFORMER, MODEL#TDX-II **NEW**


Specific Info On This Equipment



Condition: New


"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

Model:  TDX-II
# Of Stations:  12
Capacity:  18 to 26 Gauge Material and no adjustments
   are necessary between gauges!!
Motor:  5 HP
Forming Speed:  50 Feet Per Minute

The Vicon TDX II Rollformer will produce SMACNA's T25a
connections. Material is formed to produce a SMACNA approved
transverse flange connection.

FEATURES:
* Twelve forming stations for superior quality
* Inboard and one outboard roll space available
* 5 HP motor coupled to an industrial oil bath gear
reducer for quiet longevity
* Independent adjustment at each forming station with pre
set spring tension
* Heavy duty roller chain drive (no belts)
* Heavy duty 1 1/4" diameter stress proof roller shafts
* Large heavy duty bearings with inner races to protect
roll shafts and extend the life of the machine
* Material capacity of 18 to 26 gauge with no adjustments
necessary between gauges
* 6" minimum part length with the use of the included
small parts feeder
* Hardened infeed guides reducing wear from plasma cut
edges
* Forming speed 50 feet per minute


INBOARD OPTIONAL ROLL SETS:
TDX Clip (12 stations)  $ 5,390.00
1 1/8" 20 Gauge Standard Standing "S" $10,540.00


OUTBOARD OPTIONAL ROLLSETS:
TDX Clip (12 Stations)  $5,390.00
1-5/8" 16 Gauge 2-in-1 Standing Seam (12-Sta) $5,225.00
1-1/8" 18 Gauge 3-in-1 Tap-in-Law, Standing Seam
       and Right Angle Flange (10-sta) $5,255.00
2" x 2" Angle  $5,225.00
     (Available Inboard for Additional $1,000.00 price add)
16 Gauge Pittsburgh (8 Stations)  $3,960.00



VICON MACHINES ARE 100% MADE IN THE USA!
