Specific Info On This Equipment

Reference Number: 7611

Condition: New

"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

Diameter:  80 - 1600 mm (3" to 64")
Strip Thickness:
  0.4 - 1.5 mm (0.016"- 0.059") galvanized steel
  0.4 - 0.8 mm (0.016"- 0.031") stainless steel
  0.6 - 1.5 mm (0.024"- 0.059") aluminium
Cutting System:
Slitter - Smooth and Noiseless Cut High Performance Super
Slitter Model H
Basic Machine:
* High speed frequency controlled main drive
* Monitoring production output
* Hydraulically controlled drive roller pressure
* Hydraulically operated clinching roller
* Automatic length measurement system   |
Performance Tested:
Guaranteed (duct of 3 m length)
0.5mm (0,020")thickness -100mm (4") diameter -327ducts/hr
0.7mm (0.028")thickness -500mm (20")diameter -83 ducts/hr
0.9mm (0.035")thickness -1250mm (50") diameter -23ducts/hr
1.25mm (0.049")thickness -1600mm (64") diameter -13ducts/hr

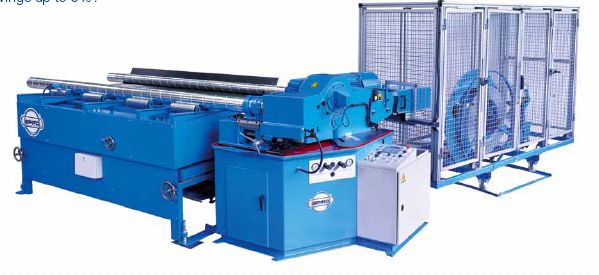

Spiro International S.A. is continuously working hard to
improve the value for tubeformer users even more. We believe
that we accomplished this goal by introducing the Tubeformer

Built upon the highly successful Tubeformer 1602 we have
finetuned and reinforced components that will result in more
production capacity, material savings, and higher
functionality. The production capacity can be increased by
38% as a result of an automatic run-off table and high-
performance super slitter combined with increased strip
speed. The patented "Bubblan" reel makes sure to produce a
fixed lock seam and assured duct quality. The patented
lubrication solution guarantees the production of grease-
free and clean ducts. Moreover, the narrow lock seam
solution generates material savings up to 3%!

"The world's best tubeformer revolutionized
an entire industry"

A top drive system enables a smooth start and fast
acceleration / deceleration, resulting in almost soundless
operation and minimized energy consumption. In addition, the
state-of-the-art interface is a user-friendly display
featuring interface to network and internet, diagnosis tool
and multilingual function. Also, the Spiror Quick-lock
system allows a fast change of forming heads. The
combination of two years warranty and the Spiror Service
Package reduces the risk of costly production interruptions
and assures a continued process of high capacity, output
quality, and reliability.
