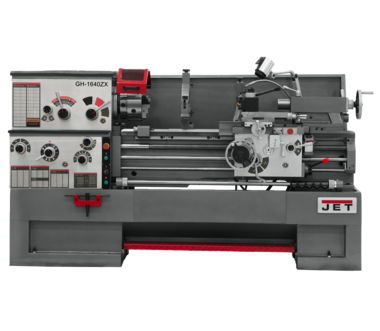

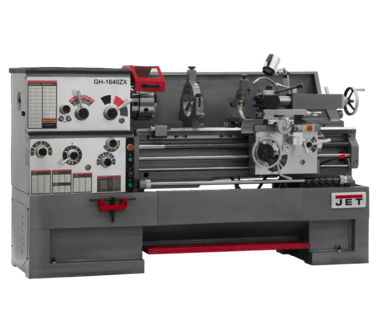

16" x 40" cc, JET ZX SERIES PRECISION LATHE, STK#321930, MODEL#GH-1640ZX


Specific Info On This Equipment



Condition: New


"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

Model:  GH-1640ZX
Stock Number:  321930
Swing over Bed (in.):  16
Swing over Cross Slide (in.):  10
Swing Through Gap (in.):  25-1/2
Length of Gap (in.):  12
Distance Between Centers (in.):  40
Spindle Bore (in.):  3-1/8
Spindle Mount:  D1-8
Spindle Taper W/ Sleeve:  MT-7 (MT-5)
Number of Spindle speeds:  12
Range of Spindle Speeds (RPM):  25-1,800
Number of Longitudinal and Cross Feed Rates:  122
Range of Longitudinal Feeds (IPR):  .0015-.0913
Range of Cross Feeds (IPR):  .0006-.0365
Number of Inch Threads:  61
Range of Inch Threads (TPI):  1-5/8-72
Number of Metric Threads:  24
Range of Metric Threads:  .05-20
Max Tool Size (in.):  1 x 1
Compound Slide Travel (in.):  5-1/8
Cross Slide Travel (in.):  9
Carriage Travel (in.):  36-9/16
Tailstock Spindle Travel (in.):  5
Taper in Tailstock Spindle:  MT-4
Steady Rest Capacity (in.):  3/8-7
Follow Rest Capacity (in.):  1/2-3-1/2
Width of Bed (in.):  13-1/8
Motor:  7-1/2HP, 230/460V, 3Ph, Prewired 230V
Prewired:  230V
Feature:  Live center
Feature:  Tool box and adjusting tools
Overall Dimensions:  97-1/2 x 40 x 48
Height:  66 inch
Width:  44 inch
Length:  97 inch
Net Weight:  5475 pound


FEATURES:
* 16", 18" AND 22" ZX SERIES LARGE SPINDLE BORE LATHES
* Uniquely designed exclusively by JET
* ISO 9001 certified manufacturer
* 3-1/8" bore spindle is supported by two tapered and one
ball bearing
* Chrome molybdenum headstock gears are hardened, ground,
and shaved
* Universal gearbox allows inch, metric, diametral, and
module pitch threads, no change gears required
* Carriage Feature one-shot lubrication and Turcite B on
bed sliding surfaces
* T-slotted compound slide featuring a four-way tool post
* One-piece cast iron base absorbs vibration allowing
heavier cuts
* High quality ANSI Class 50 wear-resistant cast iron bed
ways are hardened and ground
* Removable gap allows up to 25-7/8" diameter work on 16",
27-1/2" on 18"
* Five position automatic carriage stop increases
productivity
* Attractive chrome control levers, dials, and knobs
complete this impressive package
* Large easy to use foot brake

STANDARD EQUIPMENT:
* Tolerance test certificate included
* 10 3-jaw scroll chuck with top reversing jaws
* 12 4-jaw independent chuck
* 12 face plate (16 models)
* 16 face plate (18 models)
* Four-way tool post
* Follow rest
* Large capacity steady rest
* Fully integrated coolant system
* Full length splash guard and coolant return
* Articulating halogen work lamp
* Centrally located controls with jog button
* Threading dial
* Mounting pads and levelers
* Spindle sleeve (MT-7 to MT-5)
* Dead center
* Live center
*Tool box and adjusting tools


2-YEAR FACTORY WARRANTY INCLUDED!!
