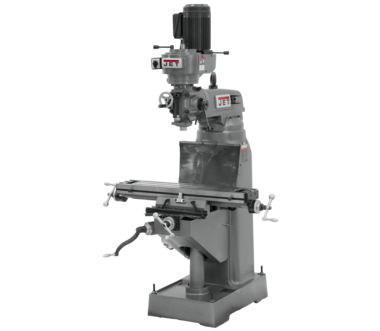

JET, VERTICAL STEPPULLEY MILL, 3-PHASE, STK#690038, MODEL#JVM-836-3 **NEW**
Specific Info On This Equipment
Reference Number: 7940
"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it." Henry Ford
Full Product Description
Model: JVM-836-3 Stock Number: 690038 Motor: 1-1/2HP, 230V only, 3Ph Number of Spindle speeds: 10 Spindle Taper: R-8 Quill Diameter (in.): 3-3/8 Head Movement (deg.): 90 Deg. R & L Max Distance Spindle to Table ( in.): 13-3/4 Distance Spindle to Column (in.): 15-3/4 Table Longitudinal Travel (in.): 22-1/4 Table Cross Travel (in.): 9-1/2 Collet Capacity: 1/8 - 7/8 T-Slots Number and Size (in.): 3 and 5/8 T-Slot Centers (in.): 2-1/2 Work Table Weight Capacity (lbs.): 500 Travel of Knee (in.): 14 Travel of Ram (in.): 10-1/2 Quill Travel (in.): 5 Range of Spindle Speeds (RPM): 120-1,550 Table Size (in.): 7-7/8 x 35-3/4 Note: Use of static phase converter will void warranty Distance Spindle to Column (min./in.): 5-1/4 Prewired 230V: 230V Overall Dimensions: 55 x 52 x 78 Height: 67 inch Width: 59 inch Length: 69 inch Net Weight: 1610 pound FEATURES: * VERTICAL MILLING MACHINE - JVM-836-1/3 * Precision bored and honed milling head * Large diameter quill is chromed * High precision spindle bearings * Over 10" of front to back ram travel * Locks on all movable surfaces * Hardened and ground precision table * Head tilts left or right * Graduated scale on column * Precision ground dovetail ways * This small mill has all of the Feature found on our larger mills, but sized for the home shop, repair shops or small maintenance shops. STANDARD FEATURES: * One-shot lubrication system * Way Covers * Draw bar * Tool box and tools 2-YEAR FACTORY WARRANTY INCLUDED!!
