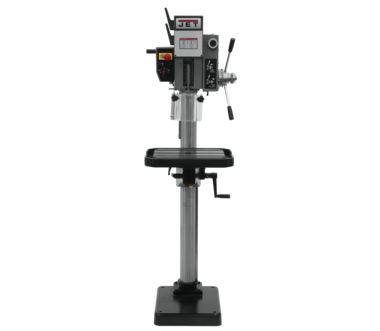

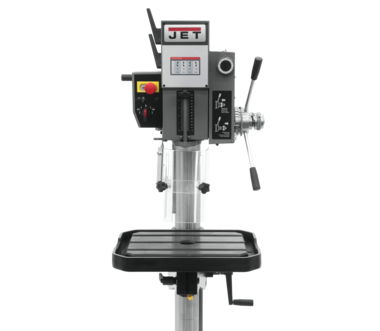

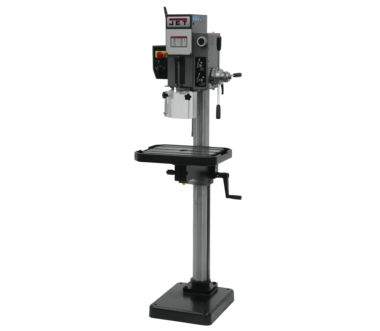

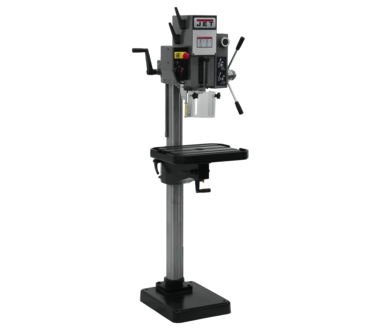

20" JET/ARBOGA GEAREDHEAD DRILL W/PWRDOWN, STK#354031, MODEL#J-A2608M-PF4


Specific Info On This Equipment



Reference Number: 7962

Condition: New


"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

Model:  J-A2608M-PF4
Stock Number:  354031
Motor:  1 - 1-1/2HP, 440/460VAC, 3ph
Number of Spindle speeds:  8
Range of Spindle Speeds (RPM):  Low-130, 260, 420, 840;
High-535, 1070, 1745, 3480
Spindle Taper:  MT-3
Quill Diameter (in.):  2-3/8
Max Distance Spindle to Table ( in.):  35-5/8
T-Slots Number and Size (in.):  2 x 9/16
Work Table Weight Capacity (lbs.):  350
Column Diameter (in.):  3-15/16
Base Dimensions (LxWxH/ in.):  24 x 22
Drilling Capacity Cast Iron (in.):  1-3/8
Drilling Capacity Mild Steel (in.):  1-1/4
Tapping Capacity Cast Iron (in.):  5/8
Tapping Capacity Mild Steel (in.):  1/2
Quill Travel (in.):  5-1/8
Quill Travel w/ Powerfeed engaged (in.):  5-1/8
Quill Down feed Rates (IPR):  .004, .006, .009, .012
Table Size (in.):  15-3/4 x 19-3/4
Drills to Center of Circle (in):  20
Max Distance - Spindle to Table (in):  35-5/8
Quill Feed:  Power
Spindle Travel (in.):  5-1/8
Number of Powerfeeds:  4
Vertical Movement of Drill Head:  8-5/8
Vertical Movement of Table (in.):  24-1/2
Table Dimensions:  15-3/4 x 19-3/4
Overall Dimensions:  24 x 22 x 72
Height:  30 inch
Width:  22 inch
Length:  66 inch
Net Weight:  600 pound


FEATURES:
* Helical gears for smooth,quiet operation
* Quick release drill ejector
* Safety latch to prevent head dropping when unclamped
* Eight spindle speeds
* T-Slotted table with coolant through
* Head and table rotate 360 degrees around column
* 2 position High/Low switch
* 3-15/16" Column diameter
* English/Metric depth gauge
* Both Head & Table can be raised or lowered
* Head and Table can be rotated 360 degrees
* Steel column
* Extra long quill movement
* Adjustable taper bearings mounted in the end of the quill
* Fiber & Steel gears which do not require oil bath and
allows for easy speed changes
* Drill head and table can be raised and lowered


2-YEAR FACTORY WARRANTY INCLUDED!!
