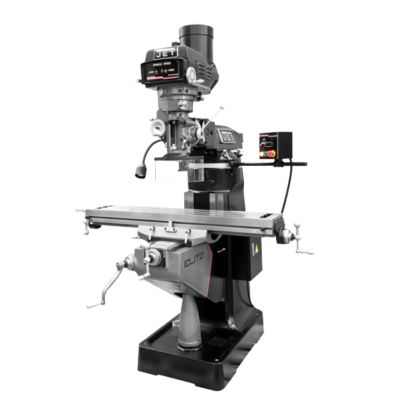

ELITE, VARIABLE SPEED VERTICAL MILL, 9"X49", STK#894010 **NEW**



Reference Number: 8153

Condition: New


"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

Model:  Variable Speed Mill
Stock Number:  894010
Table Size (L x W) (In.):  9 x 49
Spindle Taper (In. x TPI):  R-8
Quill Diameter (In.):  3-3/8
Number of Spindle Speeds:  Variable
Range of Spindle Speeds (RPM):  60 - 4500
Quill Down Feed Rates (IPR):  0.0015 - 0.003 - 0.006
Spindle Travel (In.):  5
Head Movement (Deg.):  90 Degrees R & L 45 Degrees F & B
Max Distance Spindle to Table (In.):  18-1/4
Distance Spindle to Column (Max.) (In.):  19
Distance Spindle to Column (Min.) (In.):  6
Collet Capacity:  1/8 - 7/8
Table Longitudinal Travel (In.):  36
Table Cross Travel (In.):  12
T-Slots Number and Size (In.):  3 and 5/8
T-Slot Centers (In.):  2-1/2
Work Table Weight Capacity (Lbs.):  550
Travel of Knee (In.):  16
Travel of Ram (In.):  13-3/8
Motor (HP):  3 HP, 230/460V, 3Ph Prewired 230V, CSA/UL
Certified
Overall Dimensions (L x W x H) (In.):  68 x 63 x 84
Weight (Lbs.):  2,200


FEATURES:
* Mounted control box houses major mill functions as well as
an emergency stop button for ease of operation
* Stainless steel Y-Axis way cover prevents damage and
contamination to the precision hand scraped way
* Head moumted electronic spindle brake engages with the
slightest pressure, interrupting power to the motor
preventing accidental start-ups
* Patented copper alloy Vari-Disc key out performs standard
disc keys providing up to ten times the wear resistance
* Class 7 spindle bearings have a lower operating
temperature and increase accuracy
* Hardened and ground lead screws for added durability and
increased precision
* Double nut adjustment mechanism virtually eliminates
backlash
* Certified Meehanite castings retain their tolerances and
remain rigid through many years of machining
* Automatic lubrication every 30 minutes with a flow of
3-6cc/cy reduces maintenance

STANDARD EQUIPMENT:
* Spindle safety guard
* Halogen machine lamp
* Dual locks on all surfaces
* Toolbox with tools
* Tolerance test sheet


3-YEAR FACTORY WARRANTY INCLUDED!!
