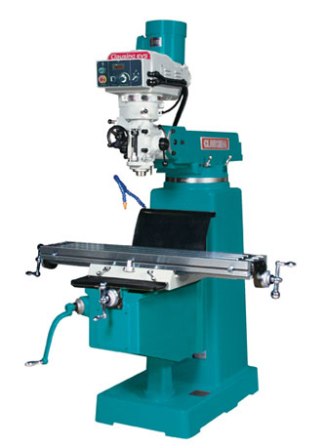

CLAUSING, VERTICAL VARIABLE SPEED MILL, 9"X49"TBL, 3 HP, MODEL#2VS **NEW**


Specific Info On This Equipment



Reference Number: 8360

Condition: New


"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

Model:  2VS
Table & Ways
Table Size:
9" x 49" (230x1245mm)
No. of T-Slots:
3
T-Slot Width:
5/8" (16mm)
T-Slot Center Distance:
2.48" (63mm)
Table Ways:
Dovetail
Knee Ways:
Dovetail
Column Ways:
Dovetail

Travels
X Longitudinal:
33.86" (860mm)
Y Cross:
11.8" (300mm)
Knee:
15.7" (400mm)
Ram:
18.53" (470mm)

Motors & Spindle
Spindle Motor:
3 hp
Amp. Draw 208v.:
10
Amp. Draw 230v.:
10
Amp. Draw 460v.:
5
Variable Spindle Speed rpm:
60-4300
Low Range rpm:
60-500
High Range rpm:
550-4300
Main Spindle Taper:
R-8 or ISO 30
Spindle Travel:
5" (127mm)
Quill Feed - in/rev. (mm/rev):
.0015/.0031/.006 (.004/.008/.015mm)
Quill Diameter:
3.38" (85mm)

Construction & Weight
Column Turret Diameter:
14.96" (380mm)
Knee Width:
11.81" (300mm)
Column Bearing Length:
16.83" (427mm)
Saddle/Table Bearing Length:
19.88" (505mm)
Ram/Turret Bearing Length:
17.51" (445mm)
Ram Length:
32.75" (832mm)
Table Load:
700 lbs. (316kg)
Net Weight:
2,200 lbs. (998kg)

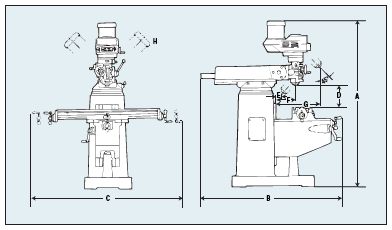

Dimensions:
A Height:
86" (2185mm)
B Depth:
75" (1905mm)
C Width:
69" (1752mm)
D Table to Spindle:
3.54"-19.29" (90-490mm)
E 45 Degrees Inward:
0-13" (0-330mm)
F Spindle o to column:
5.5"-26" (140-660mm)
G 45 Degrees Outward:
10.43"-27.95" (265-710mm)
H Head Tilt:
90 Degrees right & left


STANDARD FEATURES:
* Meehanite Castings for superior rigidity and wear
resistance
* Hardened & Ground X,Y & Z Ways
* X/Y ways coated with Turcite B
* Column & Knee Way Covers
* T-slots are ground to provide reference edge for
positioning your workpiece
* Hardened & Ground Table Surface
* Hardened & Ground Spindle
* Chromed & Ground Quill
* Chromed X, Y & Z Leadscrews
* Double Nut Leadscrew for backlash compensation
* ABEC 7/CP4 Spindle Bearings
* Coolant System w/Pump & Switch
* Flexible Segmented Coolant Nozzle
* Chromed Y Screw Covers and 0ne-piece Wipers
* 7/16" Imperial Drawbar (2VS, 3VS )
* M16 Metric Drawbar w/lSO 40 Spindle (4VSQ)
* 3 hp AC Motor (2VS & 3VS)
* 5 hp AC Motor (4VSQ)
* AC Rapid Vertical Drive (4VSQ)
* Variable Speed Drive
* Articulating Head for Compound Angles
* Worm gear angular positioning of head in two directions
* Lever-operated manual rapid quill movement
* Handwheel for fine quill feed
* Adjustable automatic feed disengagement for quill feed
* Micrometer depth stop
* Reversing switch for clockwise or counter clockwise
operation
* R-8 or lSO 30 Spindle (2VS & 3VS)
* ISO 40 Spindle (4VSQ)
* Spindle Brake (Hand operated)
* One-shot lubrication
* Tool Kit, Test and Accuracy Chart
* Operations Manual/Parts List
* Knee Assist on (4VSQ)


TWO (2)-YEAR FACTORY WARRANTY INCLUDED!!
