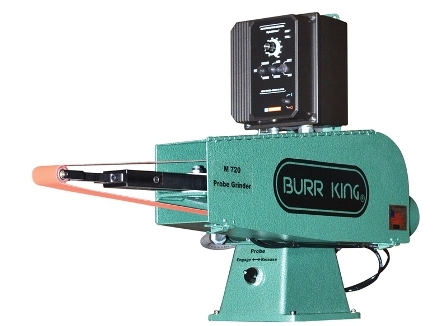

NO. 720, BURR KING 1"X72" (OR 2"X72") PROBE BELT GRINDER, MODEL#720, NEW


Specific Info On This Equipment



Reference Number: 8810

Condition: New


"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

MODEL:  720 (1x72 OR 2x72) PROBE BELT GRINDER

FEATURES:

-72" belt track
-1/2 to 2 inch belt widths
-1 inch diameter X 2 inch wide contact wheel
-5500 sfpm
-1.5 horse power in popular voltage and phase options
-Air tension control abrasive belt
-Pressure regulation and adjustment
-Accepts all Burr King 1400 series nose attachments
(choice of one with machine)
-Heavy fabricated steel frame
-Out front grinding point with up to 14 inches probe
capability (diameter dependent)
-Intergrated dust collection shroud with 3 inch outlet
-Belt guard with belt access door
-Bench or pedestal mount
-Foot print approximately 20W x 36D x 36H

OPTIONAL FEATURES:

-Variable speed from 500 to 5200 in 1 inch phase and 3
phase options
-Magnetic starters
2 horse power motors
-Mounting pedestal
-Various nose attachments with contact wheels from
3/8 to 3 inches in diameter with 1/2, 1, and 2 inch widths

*Pedestal is optional, not included
*Includes magnetic starter (NEMA 12) and controls without
power cord.


DESCRIPTION:

The model 720 presents a unique up front, two wheel, rear
drive configuration that quickly accepts contact wheel
finishing diameters from 3/8 inches to 3 inches in diameter.
The model 720 is equipped with a reliable and fully
adjustable air pressure, belt tension control system.  Using
1/2 inch to 2 inch belt width.

The model 720 72 inch belt track delivers long abrasive life
coupled with excellent utility.  Available in single or
vari speed.

Model 720 Probe Belt Grinder Delivers more utility to Burr
King customers!
-Reach into deep cavities
-Finish the I.D. of tubing
-Work exotic materials with multiple belt speeds from 500 to
5500 SFPM
-Excellent for turbine blades
-Delicately blend finishes
-Rough away material
-Finish inside diameters


MADE IN THE USA!!!
