Full Product Description
HS1418
Capacity: 14" Round @ 90 degrees, 14" Square @ 90 degrees
12" Round @ 45 degrees, 12" Square @ 45 degrees
8" Round @ 60 degrees, 8" Square @ 60 degrees
Swivel: 60 degrees in both directions
Blade Size: 1" Width x 13' 10" Length .035 Thick (bi-metal)
Blade Guards: Pulleys and blade
Blade Speeds: 70/140/270 sfpm
Table Height: Precision ground 24" x 30"
Feed Systems: Hydraulic cylinder for controlled feeds
Wheels: Cast Iron
Motor: 2 HP, 220/440V three-phase
Dimensions: 34 1/2" Width x 80" Height x 90" Length
Shipping Weight: 1,600 lbs
Special Features:
- Automatic shutoff (safety magnetic starter)
- Blade cleaning brush
- Adjustable cast iron arms
- Carbide Guide Inserts
- Quick action vise (can be moved to either side)
Coolant System Information:
- Side Splash Panels
- Coolant Pump: 3.5 gpm
- Coolant Reservoir: 8 gallon with adjustable needle valve
flow control

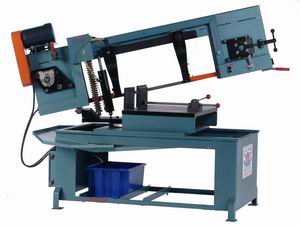

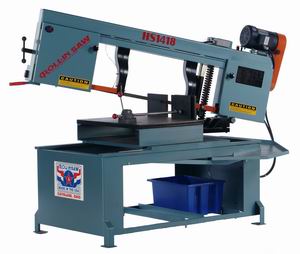

The durable horizontal HS1418 swivel band saw combines high
capacity with durability. A workhorse of a band saw, the
HS1418 is built to give you years of reliable service.
MADE IN THE USA SINCE 1940!!!
