Specific Info On This Equipment

Reference Number: 9781

Condition: New

"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it."   Henry Ford

Full Product Description

MODEL: 3613-V3

Band Speed: 30-5,500 fpm (9-1,680mpm)
AC Motor Drive: 3-hp (2.25kW)
Machine Weight (net): 1,5500 lbs (703kg)
Throat, Band to Column: 36" (915mm)
Maximum Work Height: 13" (330mm)
Band Width Capacity: 1/8"-1" (3.2-25.4mm)
Band Length: 199" (5,055mm)

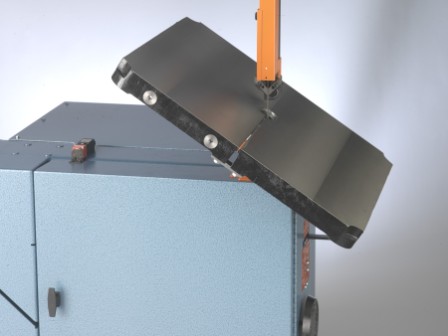

Table: 26" x 26" (660 x 660mm) Tilts 45R, 10L
Table to Floor Height: 39" (990mm)
Table Capacity: 500 lbs (227kg)
Upper Wheel Adjustment: 3" (76mm)

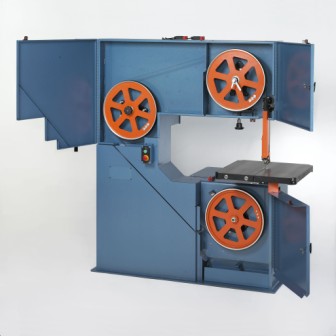

Wheels: Aluminum with crowned rubber tires
Floor area required: 74" x 45" x 81-1/2"
      (1,880x1,145x2,070 mm)

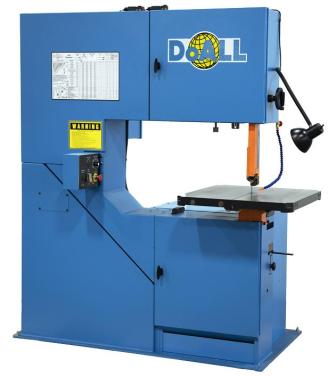

The DoALL 3613-V3 vertical contour band saw features
variable frequency 3 hp (2.23kW) AC inverter drive controls
that start the motion of the band wheels slowly to reduce
mechanical shock and increase drive train life, plus a
dynamic braking function that rapidly stops motion when
power is shut-off. The 3613-V3 upright metal cutting band
saw, with a 36? (915mm) cutting capacity, is widely used in
machine shops, maintenance departments, schools and other
areas where cutting a wide variety of materials is required.

- Set of high-speed, insert-type guide blocks for bands
        1/8"-1" (3.2-25.4mm)
- Set of steel guide inserts for bands 1/4", 3/8" and 1/2"
- Band door interlocks
- Job selector
- Wrench for saw guides
- Chip pan
- Chip blower
- Work light
- Post elevating hand wheel
- Band tension indicator
- Transmission oil
- Wrench for table trunnion
- Band speed indicator reading in fpm/mpm
- Variable frequency AC drive dual-range transmission
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD or USB data stick
